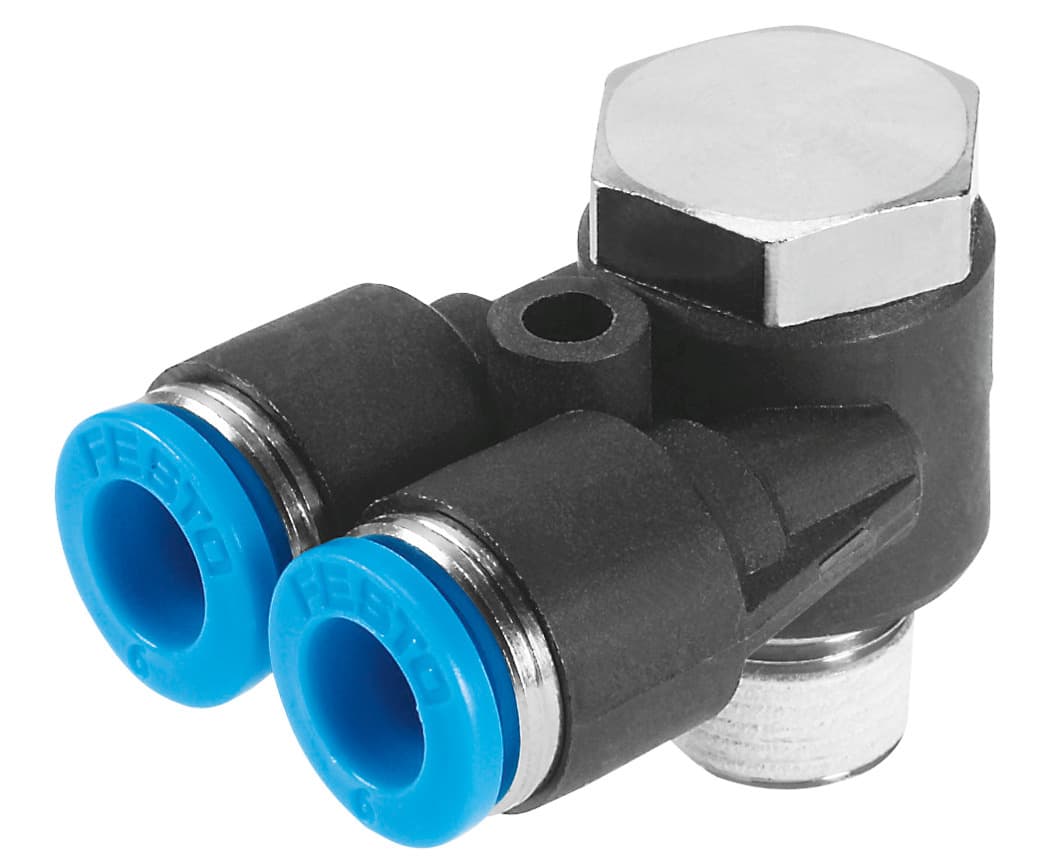

Product Model
qsylv-3/8-10
Key Features
- 1The Festo QSylv-3/8-10 push-in fittings ensure a perfect seal with nitrile rubber sealing rings, guaranteeing reliable connections in pneumatic applications.
- 2These fittings are designed for use with 3/8 inch OD tubing and feature a threaded-to-tube connection style, making them versatile and easy to install.
- 3The QSylv series is part of Festo's standard push-in fitting range, offering a wide selection of sizes and configurations to meet various pneumatic needs.
- 4The fittings are suitable for applications with a temperature range up to 80°C and a pressure range up to 14 bar, ensuring they can handle demanding conditions.
- 5Festo QSylv-3/8-10 fittings are known for their high-quality construction and durability, making them a reliable choice for industrial automation and pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.7mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape, dual, parallel | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 69.5g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | Hollow bolt with external hex |
| Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153194 |
Specifications may be subject to change without notice
