Product Model
qsyl-3/8-12
Key Features

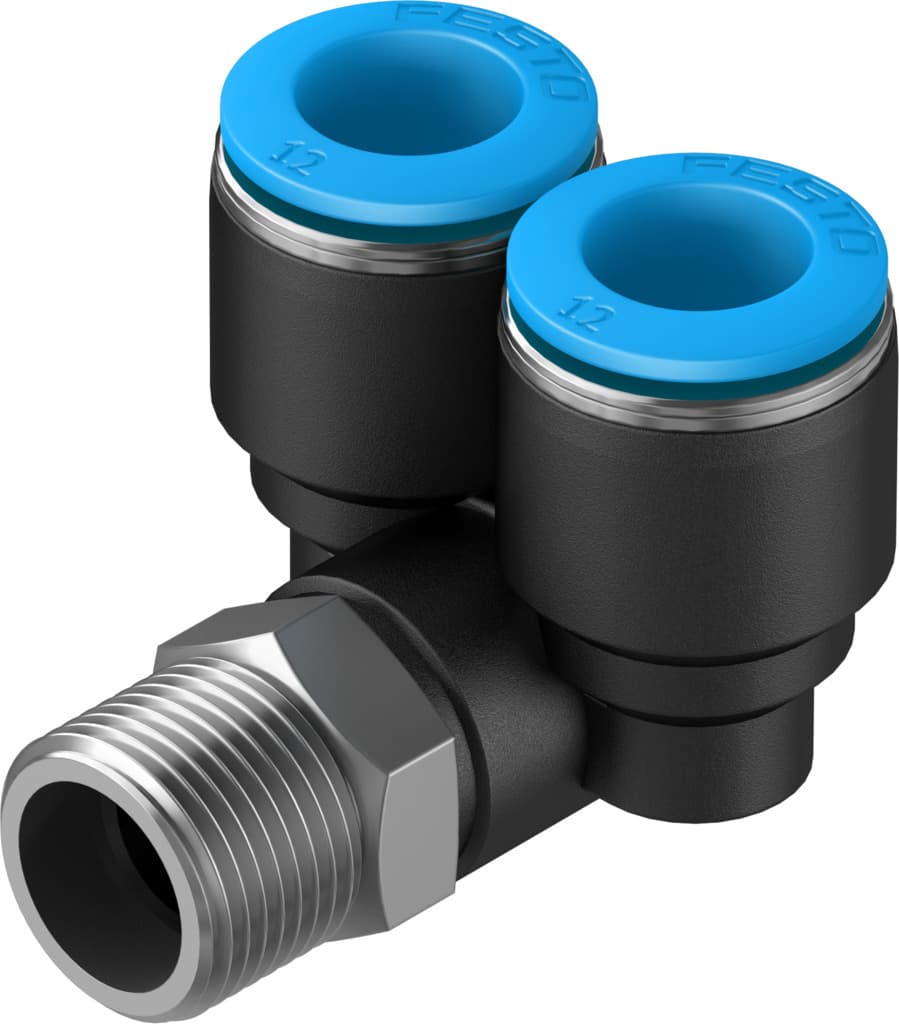

- 1The Festo QS Series Y-Fitting QSYL-3/8-12 is a versatile and reliable pneumatic fitting designed for applications requiring high pressure and temperature resistance, up to 80°C and 14 bar.
- 2This Y-shaped fitting features a 17mm external HEX and a PTFE pre-coated thread, ensuring secure and leak-free connections in various pneumatic systems.
- 3The QSYL-3/8-12 is configured with one inlet and two outlets, making it suitable for complex pneumatic setups where multiple connections are necessary.
- 4The fitting is part of the QS series, known for its high-quality materials and robust design, including nickel-plated brass and stainless steel components for enhanced durability and corrosion resistance.
- 5The QSYL-3/8-12 is designed to be rotatable, allowing for easy installation and flexibility in system design, making it a valuable component in both new and existing pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 9.7mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape, dual, parallel | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 51g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | External hexagon, AF 17 |
| Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153180 |
