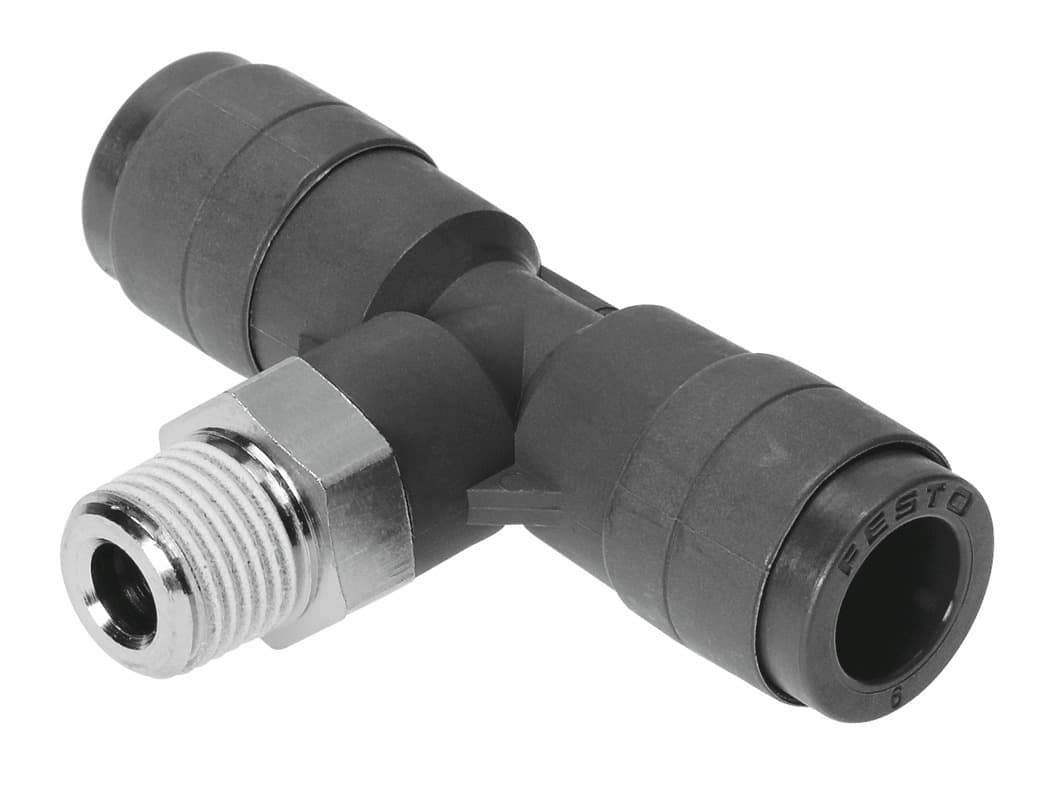

Product Model
qst-v0-1/8-4
Key Features
- 1The QST-V0-1/8-4 is made with PBT-reinforced housing and nickel-plated brass screw-in stud, ensuring durability and corrosion resistance.
- 2Features UL94 V-0 fire test material for both the housing and releasing ring, providing excellent fire safety.
- 3Compatible with compressed air to ISO 8573-1:2010 and water, with an operating pressure range of -0.95 to 10 bar.
- 4Designed with a push-pull principle and 360° orientable male thread with an external hexagon, making it easy to install and adjust.
- 5Weighs 14 grams and has a nominal size of 2.8 mm, ensuring a robust and compact design suitable for various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.8mm |
| Material fire test | UL94 V-0 (housing) UL94 V-0 (releasing ring) | Type of seal on screwed plug | Coating |
| Design | T-shape | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 14g | Type of mounting | External hexagon, AF 10 |
| Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Black | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | PBT | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel Brass | Manufacturer ID | 132894 |
Specifications may be subject to change without notice
