Product Model
qstf-g3/8-12
Key Features

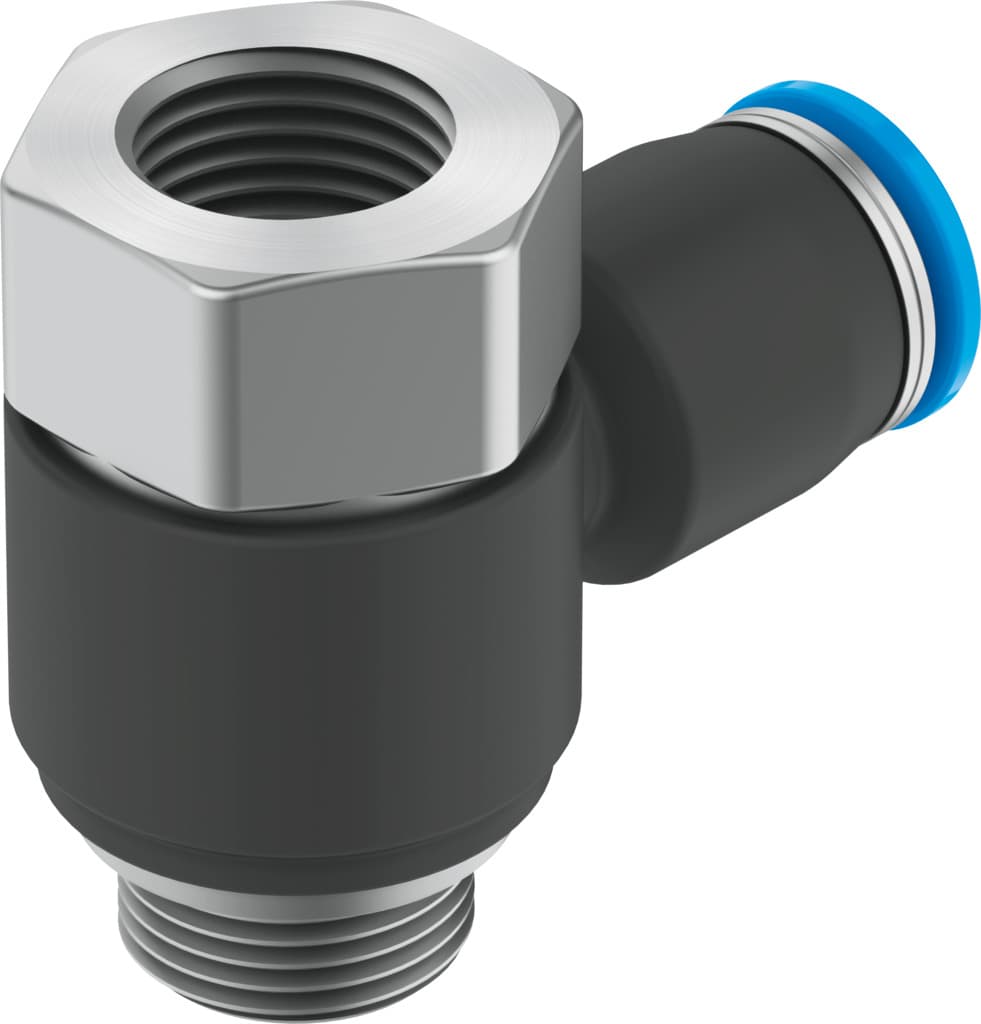

- 1The Festo QSTF-G3/8-12 push-in T-fitting offers a nominal size of 8.7 mm, ensuring precise and reliable pneumatic connections in various applications.
- 2This fitting features an L-shape design with an additional connection, providing flexibility and ease of use in complex pneumatic systems.
- 3The QSTF-G3/8-12 is designed with a sealing ring on the screwed plug, ensuring a secure and leak-free connection, even under high operating pressures.
- 4The fitting is compatible with compressed air as per ISO 8573-1:2010 and water, making it versatile for different operating media.
- 5The QSTF-G3/8-12 is RoHS-compliant and features a blue release ring, enhancing its corrosion resistance and visual identification in cleanroom environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 8.7mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape, additional connection internal thread lengthwise | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 77g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | External hexagon, AF 24 |
| Pneumatic connection 1 | External thread G3/8 | Pneumatic connection 2 | Internal thread G3/8 for pneumatic tubing outside diameter 10 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186207 |
