Product Model
qst-8-50
Key Features

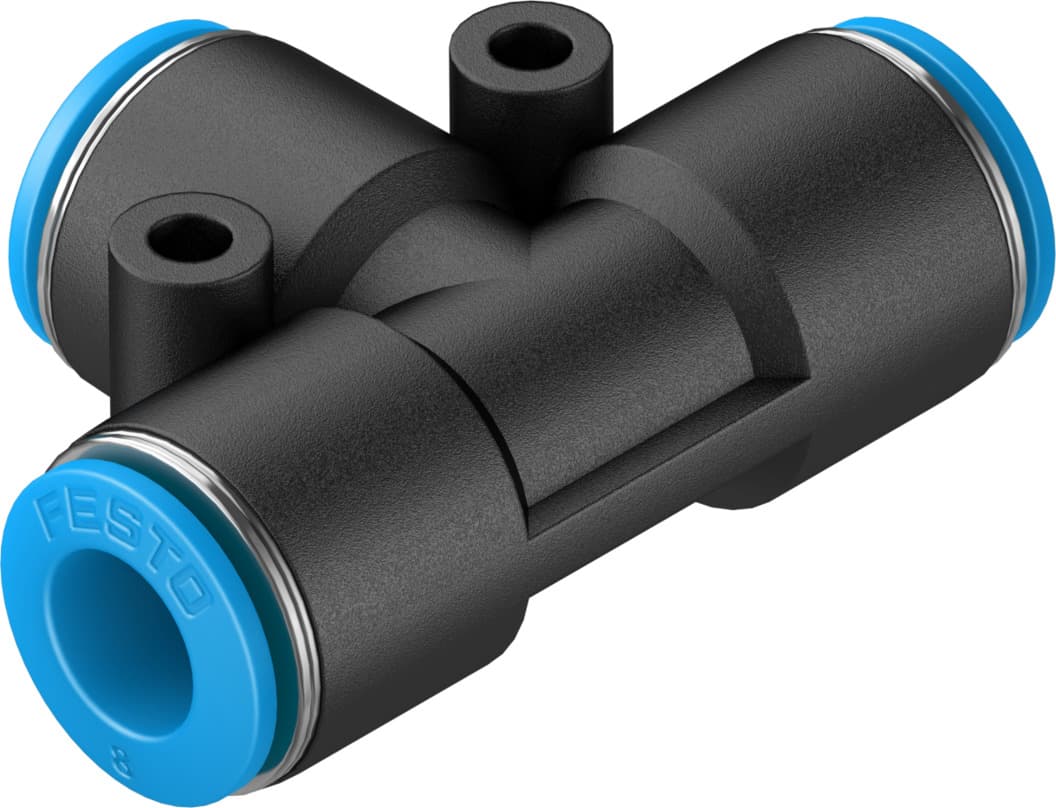

- 1The Festo QST-8-50 Push-In T-Connector is designed with a T-shape for easy installation and a push-pull principle for quick connection and disconnection. It features a nominal size of 6.2 mm and is available in packs of 50 units.
- 2This connector operates within a wide temperature range of -10°C to 80°C and supports operating pressures from -0.095 MPa to 1.4 MPa, making it suitable for various industrial applications.
- 3The QST-8-50 is made from high-quality materials, including PBT for the housing, POM for the release ring, and NBR for the tubing seal. It also features a corrosion resistance class of CRC 1, ensuring low corrosion stress.
- 4This push-in connector is designed for use with compressed air to ISO 8573-1:2010 and water (liquid, ice-free). It supports lubricated operation and is suitable for cleanroom environments with a class 4 rating according to ISO 14644-1.
- 5The Festo QST-8-50 Push-In T-Connector is RoHS-compliant and comes with a blue-colored release ring. It is ideal for applications requiring reliable and efficient pneumatic connections, ensuring smooth operation in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.2mm |
| Mounting position | Any | Design | T-shape |
| Pack size | 50 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 16g |
| No. of outlets | 2 | No. of supply lines | 1 |
| Pneumatic connection 1 | for pneumatic tubing outside diameter 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130804 |
Specifications may be subject to change without notice
