Product Model
qst-1/8-8-50
Key Features

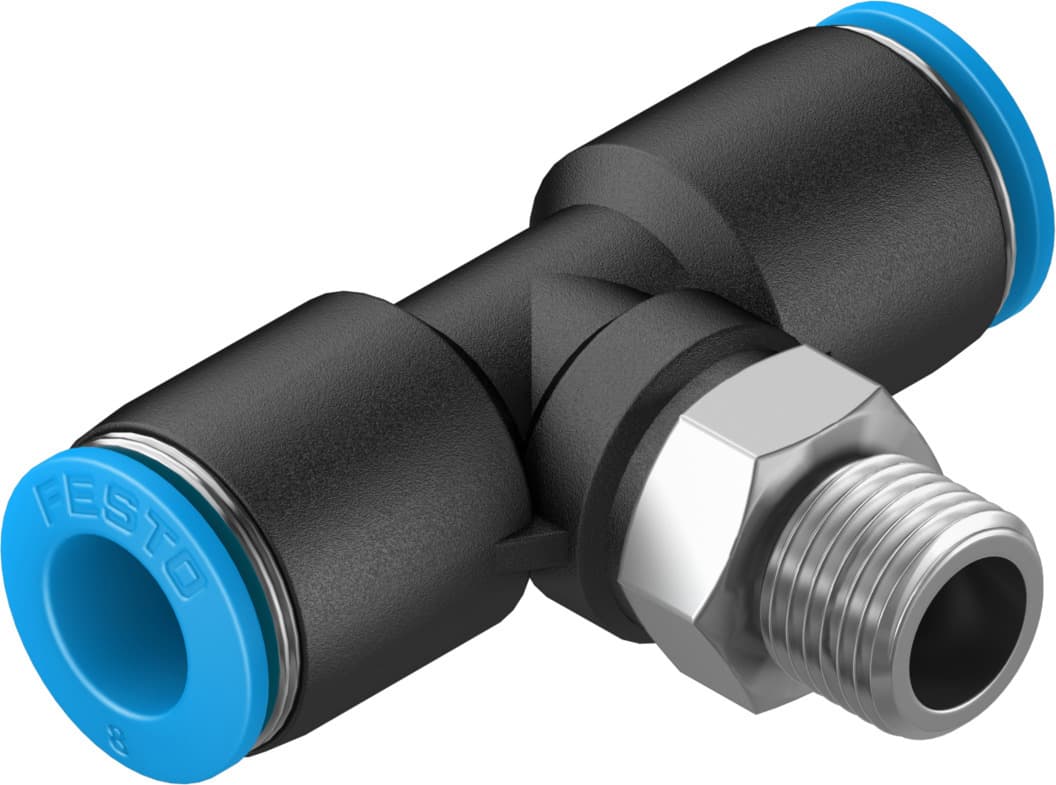

- 1The Festo QST-1/8-8-50 push-in T-fitting ensures a secure and reliable connection for your pneumatic systems, with a nominal size of 6 mm.
- 2Suitable for both compressed air and water applications, this fitting is versatile and can be used in various industrial settings.
- 3Featuring a push-pull principle, the QST-1/8-8-50 is easy to install and requires minimal effort, making it a convenient choice for your pneumatic needs.
- 4With a corrosion resistance class of CRC 1, this fitting offers low corrosion stress, ensuring durability and longevity in harsh environments.
- 5The compact design of the QST-1/8-8-50 makes it ideal for tight spaces, allowing for efficient use of space in your industrial setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | T-shape | Pack size | 50 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 19g | No. of outlets | 2 |
| No. of supply lines | 1 | Type of mounting | External hexagon, AF 12 |
| Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130795 |
Specifications may be subject to change without notice
