Product Model

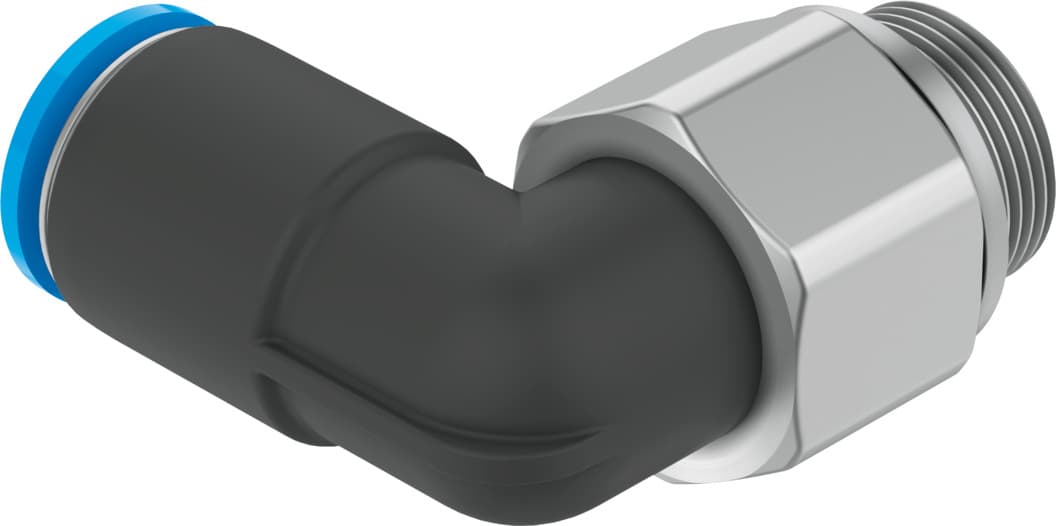

qsrl-g1/8-6

Manufacturer

Festo

Key Features

1The QSRL-G1/8-6 features a 360° rotatable design with a ball bearing, ensuring smooth and precise movement in various applications.
2This product uses a push-in L-fitting design, making it easy to install and remove without the need for tools.
3Designed for use with compressed air in accordance with ISO 8573-1:2010, ensuring reliable performance in pneumatic systems.
4With a corrosion resistance classification of CRC 1, the QSRL-G1/8-6 is suitable for applications where low corrosion stress is required.
5The product operates within a wide temperature range (0°C to 60°C) and supports lubricated operation, enhancing its durability and performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	3.1mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	L-shape	Pack size	1
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Max. rotational speed	500rpm
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	0°C 60°C	Max. radial torque	0.012Nm
Nominal tightening torque	5.4Nm	Tolerance for nominal tightening torque	± 20%
Product weight	18g	Type of mounting	External hexagon, AF 14
Pneumatic connection 1	External thread G1/8	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Material of screwed plug	Brass, nickel-plated
Note on materials	RoHS-compliant	Housing material	PBT
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	186286

Specifications may be subject to change without notice
