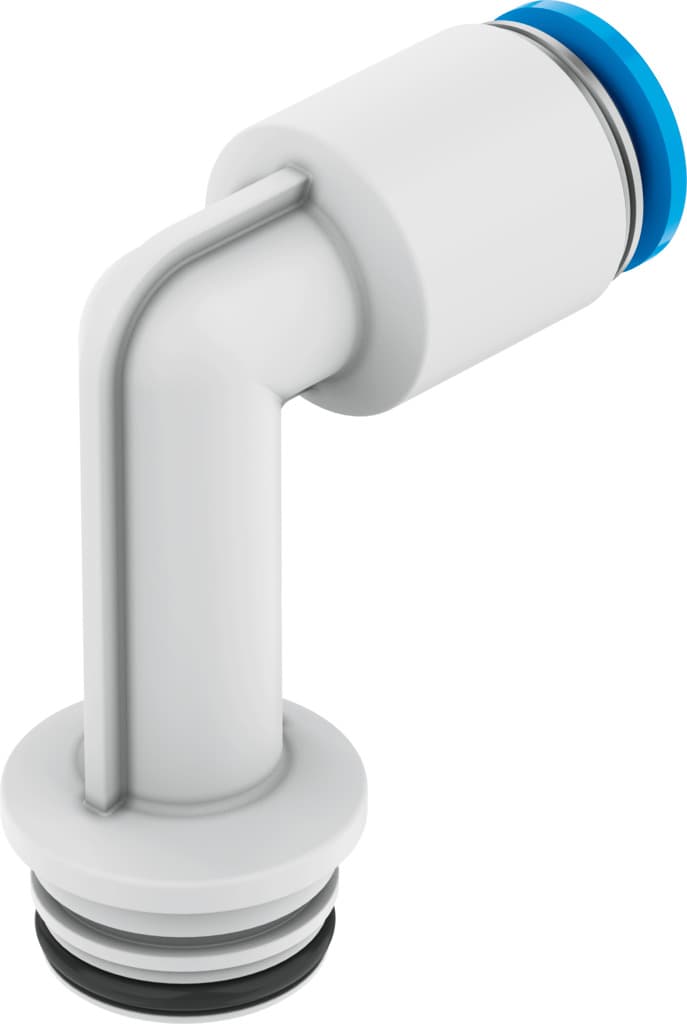

Product Model
qspllkg18-8
Key Features
- 1Reliable Pneumatic Connection: The Festo QSL-G1/8-8 features a robust push-in design with a G1/8 male thread, ensuring secure connections in pneumatic systems.
- 2Wide Operating Pressure Range: This fitting supports operating pressures from -0.95 to 16 bar, making it suitable for various industrial applications.
- 3Temperature Flexibility: The QSL-G1/8-8 operates within an ambient temperature range of 0 to 150°C, providing flexibility in diverse environments.
- 4Corrosion Resistance: Constructed from nickel-plated brass and FPM materials, this fitting offers excellent corrosion resistance and durability.
- 5Easy Installation: The push-in design allows for quick and easy installation, reducing setup time and increasing productivity in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.2mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | L-shape, long | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 8.1g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132950 |
Specifications may be subject to change without notice
