Product Model
qspllkg10-6
Key Features

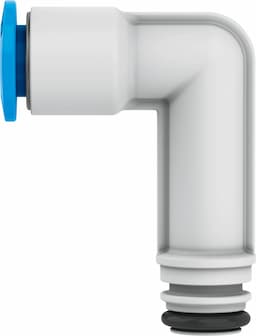

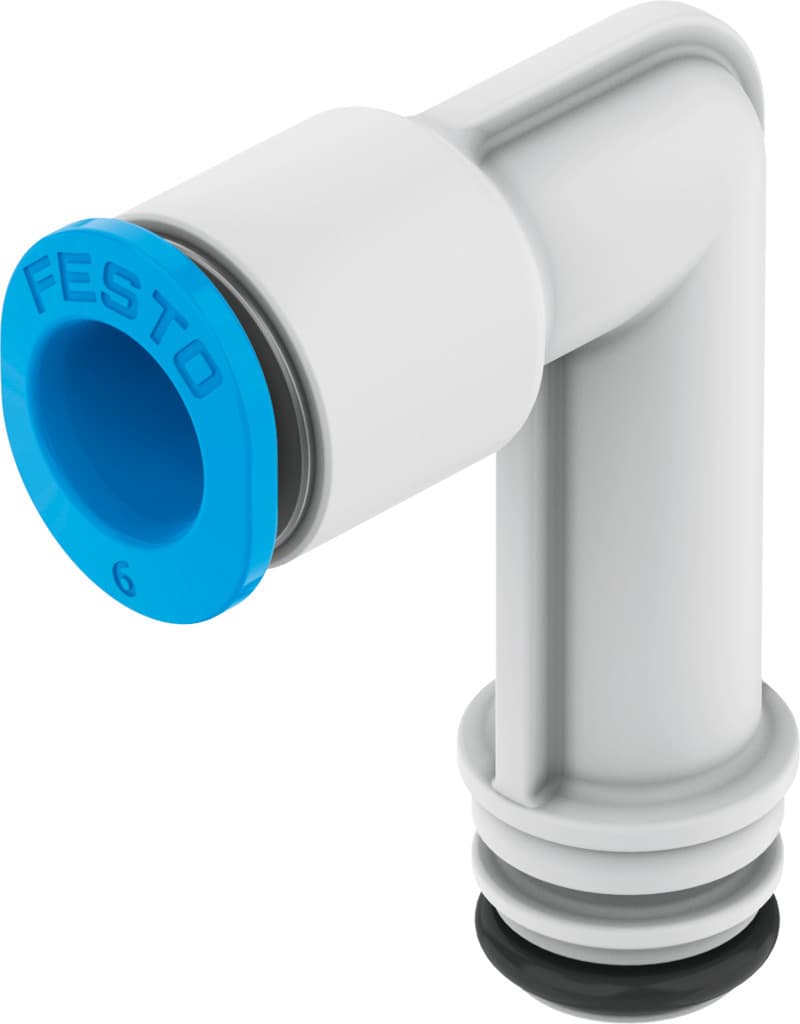

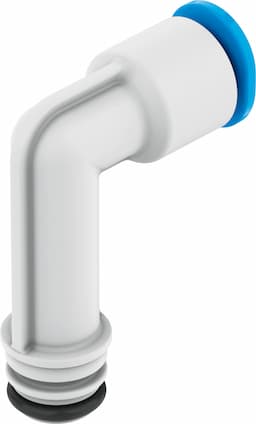

- 1The Festo QSL-6 push-in L-connector ensures secure and reliable connections in pneumatic systems, suitable for a wide range of applications.
- 2This connector operates effectively within the pressure range of -0.095 MPa to 0.6 MPa, making it versatile for various pneumatic tasks.
- 3Featuring a low corrosion stress (CRC 1), the QSL-6 is designed to withstand harsh environments, ensuring long-lasting performance.
- 4The connector can be mounted in any position, providing flexibility in system design and installation.
- 5With its push-pull principle and easy-to-use design, the QSL-6 makes installation quick and efficient, minimizing downtime and maximizing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 3.3mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | L-shape, long | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 3.2g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132926 |
Specifications may be subject to change without notice
