Product Model

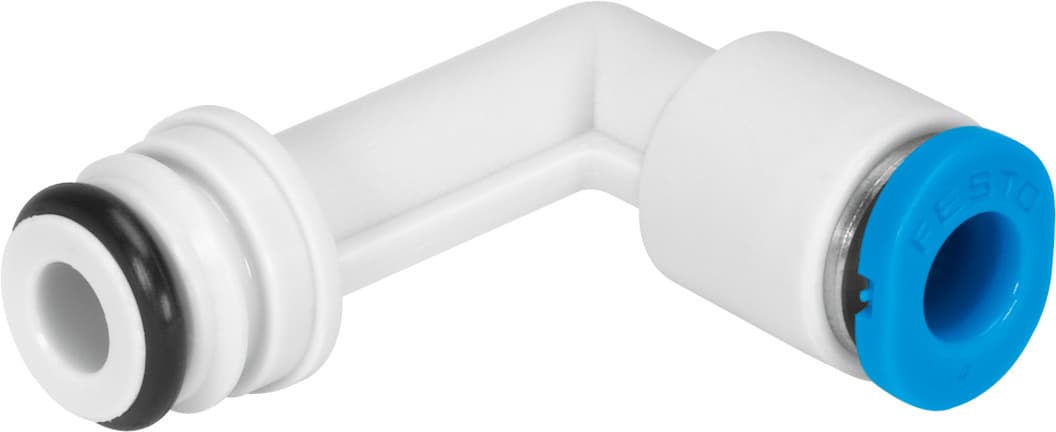

qspllkg10-4
Key Features
- 1Made from PBT (Polybutylene Terephthalate) for durability and resistance to high pressures.
- 2Push-in design allows for quick and secure connection to 10 mm tubing without the need for tools.
- 3Compatible with operating pressures up to 14 bar and temperatures from -10°C to 80°C.
- 4Meets RoHS and RoHS Phthalates compliance, ensuring environmental safety.
- 5Suitable for various pneumatic systems and applications, including automation and manufacturing processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 2.3mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | L-shape, long | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 2.4g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132925 |
Specifications may be subject to change without notice
