Product Model
qsplkg20-10
Key Features

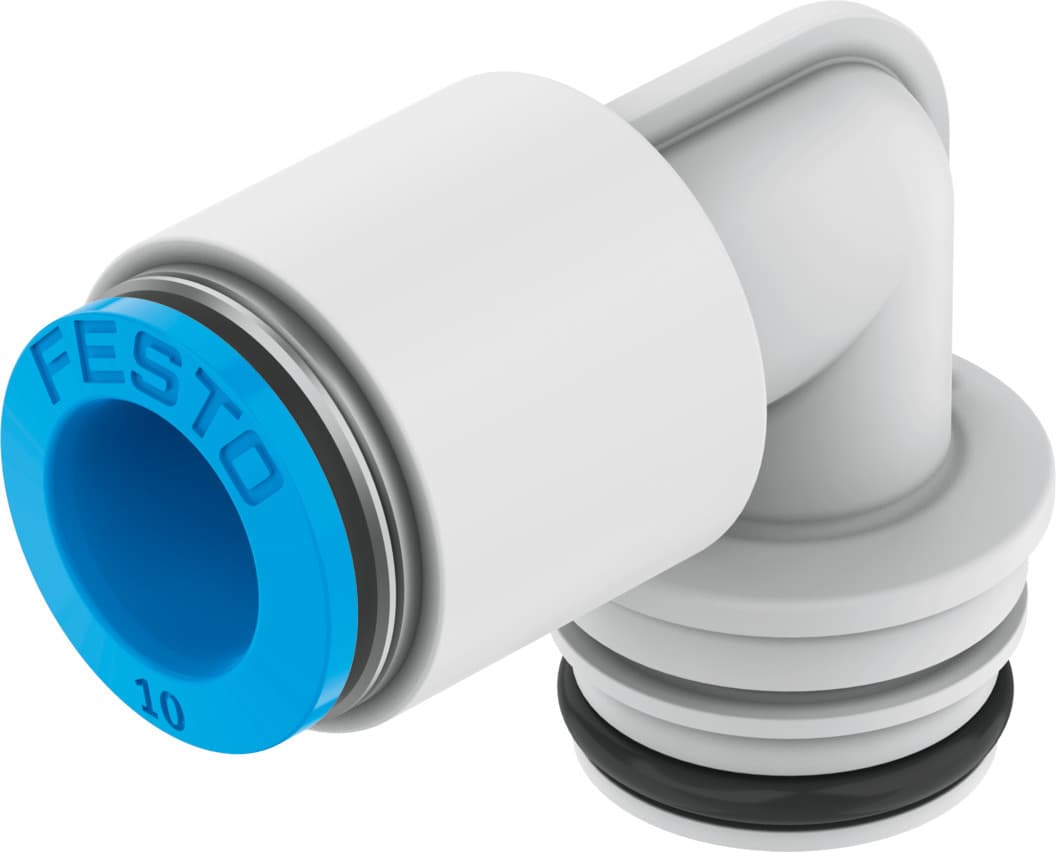

- 1The Festo QSPLKG20-10 cartridge features a push-pull principle design, ensuring easy and secure connections.
- 2This cartridge offers optional mounting positions, providing flexibility in installation.
- 3The L-shape design of the QSPLKG20-10 cartridge allows for efficient use of space and easy integration into pneumatic systems.
- 4Designed for use with compressed air to ISO 8573-1:2010, this cartridge ensures reliable performance in various applications.
- 5With a corrosion resistance class of CRC 1, the QSPLKG20-10 cartridge is suitable for applications where low corrosion stress is required.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.1mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | L-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 14g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 20 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132856 |
Specifications may be subject to change without notice
