Product Model

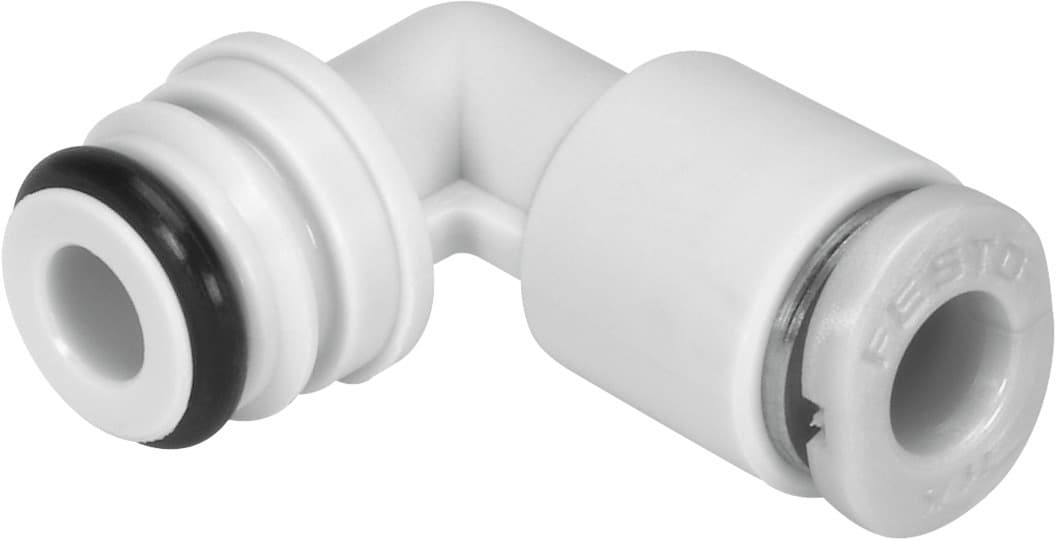

qsplkg10-1/8-u
Key Features
- 1High-Quality Material: The QSPLKG10-1/8-U is made from reinforced polyamide (PA) for durability and resistance to high pressures.
- 2Flexible Mounting: With its L-shaped design, this cartridge offers flexibility in mounting positions, making it versatile for various applications.
- 3NBR Material Tubing Seal: Equipped with a NBR material tubing seal, ensuring a reliable and leak-free connection in pneumatic systems.
- 4Compact Size: Designed to fit 10mm cartridges with a 1/8 push-in connection, ideal for miniaturized pneumatic systems.
- 5Reliable Performance: Suitable for high-pressure applications up to 10 bar, providing consistent performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.8mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 2.1g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 1/8" | Ambient temperature Fahrenheit | 23°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PA-reinforced | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 132854 |
Specifications may be subject to change without notice
