Product Model
qsplk18-6
Key Features

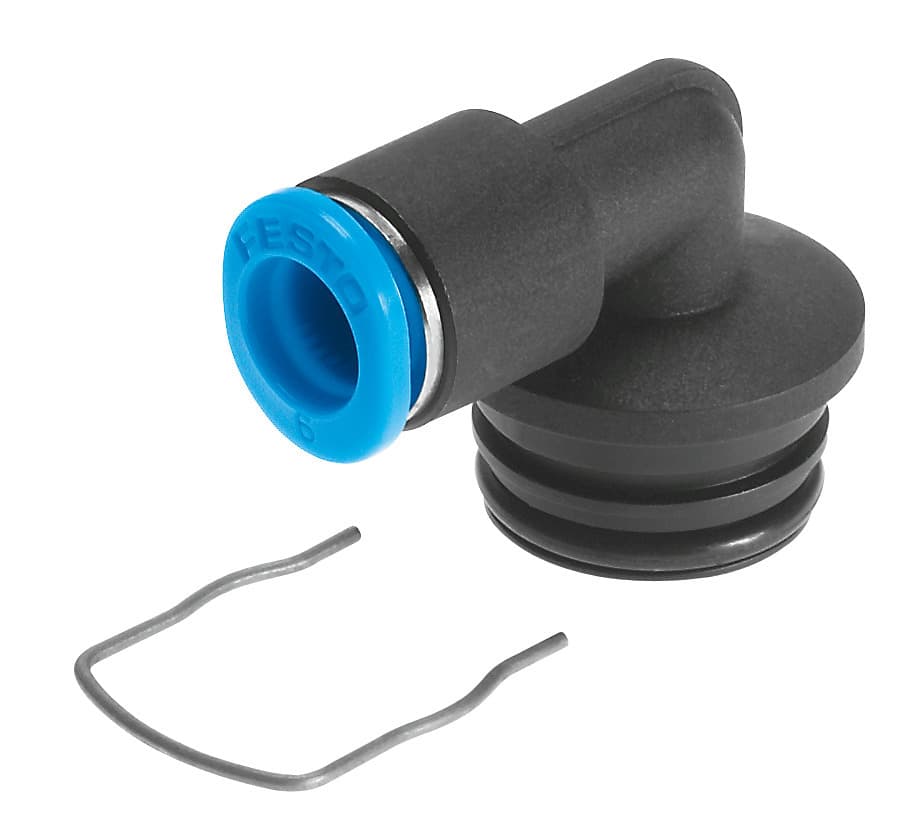

- 1Standard Size and Design: The Festo QSPLK18-6 cartridge comes in a standard 3.6mm nominal size with an L-shape design, ensuring compatibility and ease of use in various applications.
- 2O-Ring Seal for Durability: Equipped with an O-ring type of seal on the screwed plug, this cartridge provides a reliable and durable connection, minimizing leaks and ensuring consistent performance.
- 3Optional Mounting Position: The QSPLK18-6 offers flexible mounting options, allowing for installation in any position, which enhances its versatility and adaptability in different setups.
- 4Push-Pull Principle Design: Featuring a push-pull principle design, this cartridge simplifies the connection process, making it easier to install and remove without the need for tools.
- 5Wide Operating Pressure Range: The cartridge supports a wide operating pressure range from -0.95 to 10 bar, making it suitable for various pneumatic applications and environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 3.6mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | L-shape | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 3.9g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130844 |
Specifications may be subject to change without notice
