Product Model

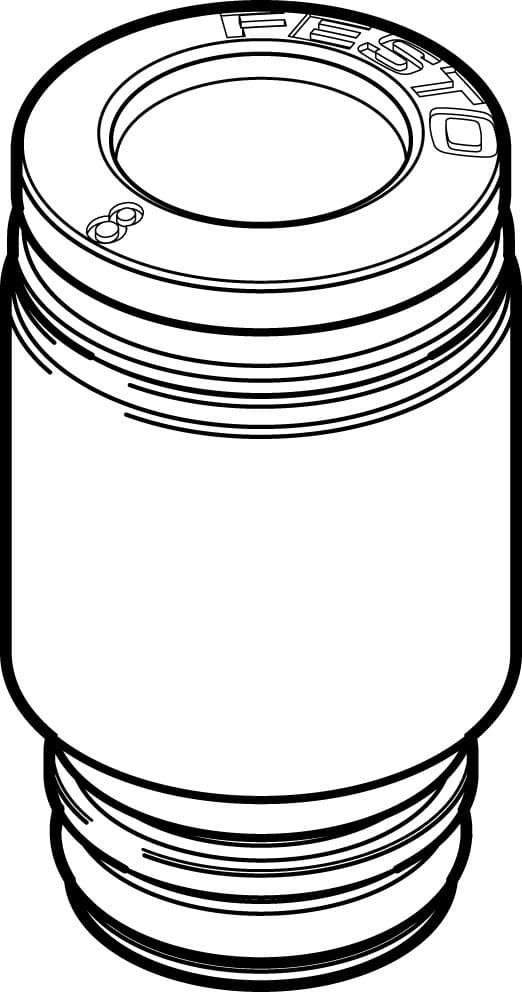

qspkg14-8
Key Features
- 1The Festo QSPKG14-8 cartridge features a standard size of 5.2 mm, making it versatile for various pneumatic applications.
- 2This cartridge includes an O-ring seal on the screw-in stud, ensuring reliable and leak-free operation.
- 3The QSPKG14-8 is designed with a push/pull principle and can be mounted in any position, providing flexibility in installation.
- 4It operates effectively within a temperature range of -5°C to 60°C and supports lubricated operation, enhancing its durability.
- 5The cartridge is made from PA-reinforced material and POM for the release ring, conforming to RoHS standards and ensuring high corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.2mm |
| Type of seal on screwed plug | O-ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 5.3g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 14 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | PA-reinforced |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132931 |
Specifications may be subject to change without notice
