Product Model

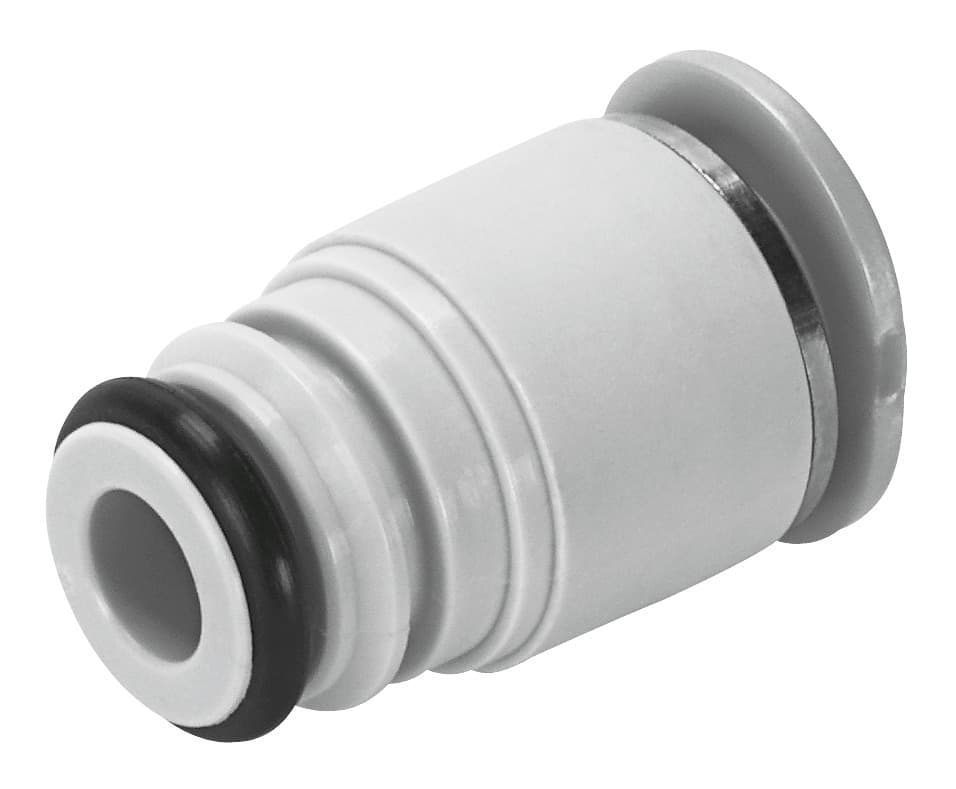

qspkg10-1/8-u
Key Features
- 1The Festo QSPKG10-1/8-U Cartridge features a compact, mini-sized design, making it perfect for applications where space is limited.
- 2This cartridge boasts a straight design, ensuring easy installation and minimal obstruction in pneumatic systems.
- 3The QSPKG10-1/8-U operates on a push-pull principle, providing a reliable and efficient connection for pneumatic tubing.
- 4Designed to work with compressed air as per ISO 8573-1:2010, this cartridge ensures compatibility with various pneumatic applications.
- 5With a corrosion resistance class of 1 (low corrosion stress), the QSPKG10-1/8-U cartridge is suitable for use in environments where corrosion is a concern.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.6mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 1.5g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 10 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 1/8" | Ambient temperature Fahrenheit | 23°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PA-reinforced | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 132852 |
Specifications may be subject to change without notice
