Product Model

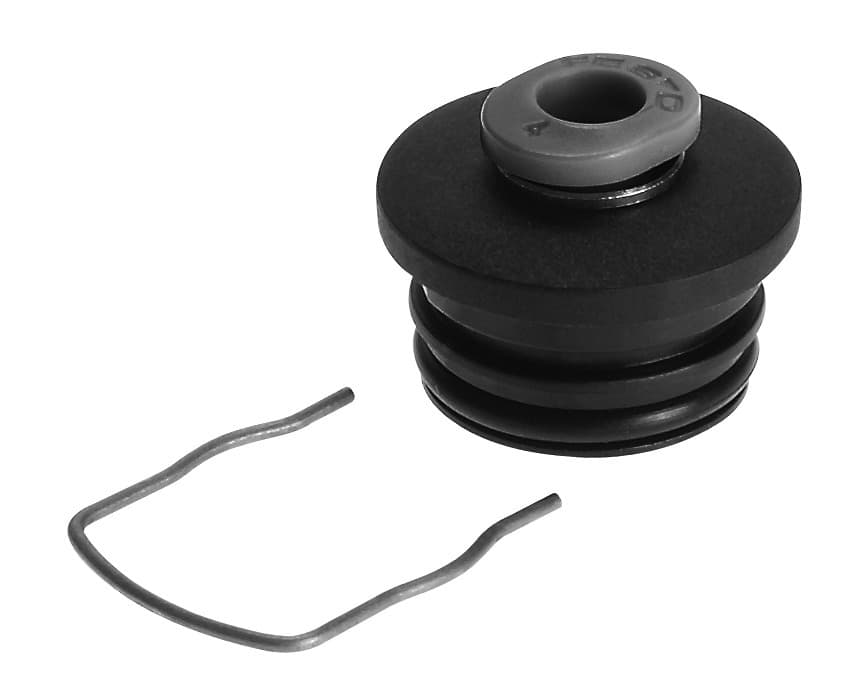

qspk18-1/4-u
Key Features
- 1Compact design with a nominal size of 3.8 mm.
- 2Versatile mounting options with a mounting pin.
- 3Operating pressure range from -0.095 MPa to 1 MPa.
- 4Compatible with compressed air to ISO 8573-1:2010.
- 5Corrosion-resistant with a low corrosion stress rating (CRC 1).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 3.8mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 10 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 2.9g |
| Type of mounting | Mounting pin | Pneumatic connection 1 | Cartridge 18 mm |
| Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" | Ambient temperature Fahrenheit | 23°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | PA-reinforced | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 132172 |
Specifications may be subject to change without notice
