Product Model
qsp17-ptb
Key Features

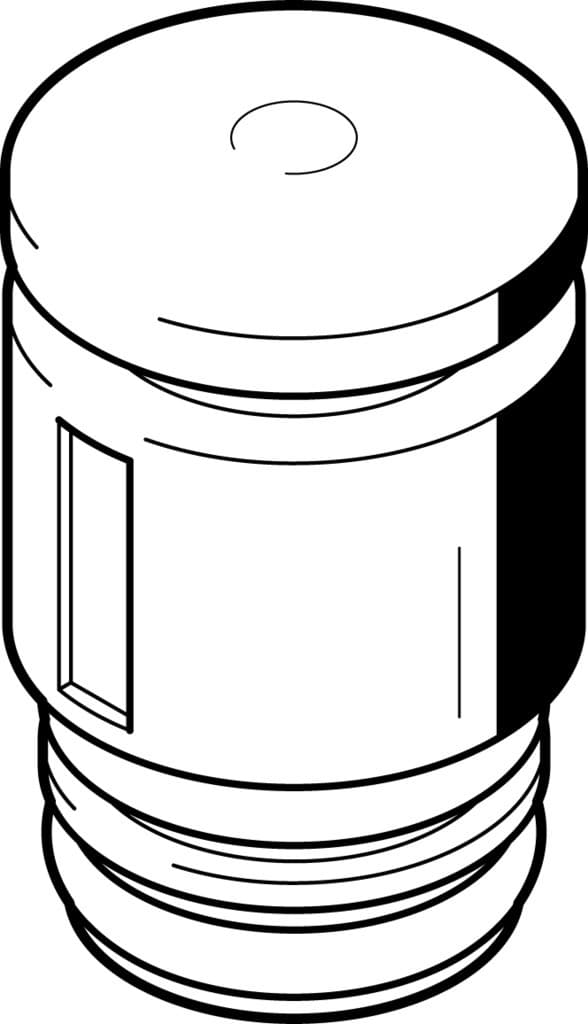

- 1The Festo QSP17-PTB Blanking Plug is designed for use with compressed air, ensuring reliable pneumatic connections in a variety of applications.
- 2This plug features a straight design and is available in a single pack size, making it easy to integrate into your pneumatic systems.
- 3The QSP17-PTB operates within a temperature range of -10 °C to 60 °C and supports lubricated operation, enhancing its durability and performance.
- 4Made from high-quality materials, including PA housing and NBR tubing seal, this plug conforms to RoHS standards, ensuring environmental compliance.
- 5With a product weight of 4.7 grams and a mounting pin type, the QSP17-PTB offers a compact and versatile solution for pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Operating pressure for entire temperature range | 13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Product weight | 4.7g | Type of mounting | Mounting pin |
| Pneumatic connection 1 | Cartridge 17 mm | Note on materials | RoHS-compliant |
| Housing material | PA | Material of tubing seal | NBR |
| Manufacturer ID | 172996 |
Specifications may be subject to change without notice
