Product Model

qsmt-m5-6-100

Manufacturer

Festo

Key Features

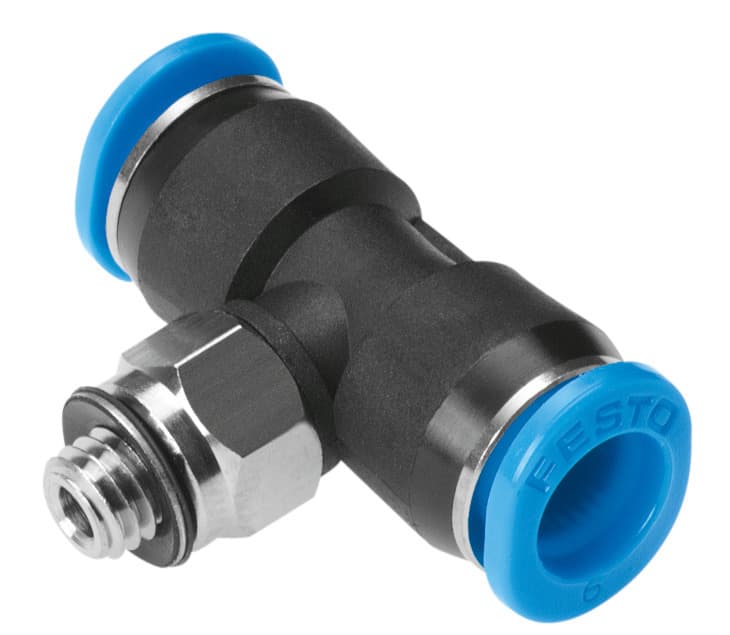

1The Festo QSMT-M5-6-100 is designed for miniaturized pneumatic systems, making it perfect for compact applications.
2This T-fitting uses a push-in principle, ensuring quick and easy connections without the need for tools.
3It operates within a wide pressure range of -0.95 to 6 bar, suitable for various industrial applications.
4Made from RoHS-compliant materials, including PBT housing and POM release ring, this fitting offers low corrosion stress.
5The fitting can be mounted in any position due to its external hexagon design, providing flexibility in installation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.1mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	T-shape	Pack size	100
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	1.2Nm	Tolerance for nominal tightening torque	± 20%
Product weight	5.6g	No. of outlets	2
No. of supply lines	1	Type of mounting	External hexagon, AF 8
Pneumatic connection 1	External thread M5	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Material of screwed plug	Brass, nickel-plated
Note on materials	RoHS-compliant	Housing material	PBT
Releasing ring material	POM	Material of tubing seal	NBR
Material of tube retaining claw	High-alloy stainless steel	Manufacturer ID	130785

Specifications may be subject to change without notice
