Product Model
qsms-6-100
Key Features

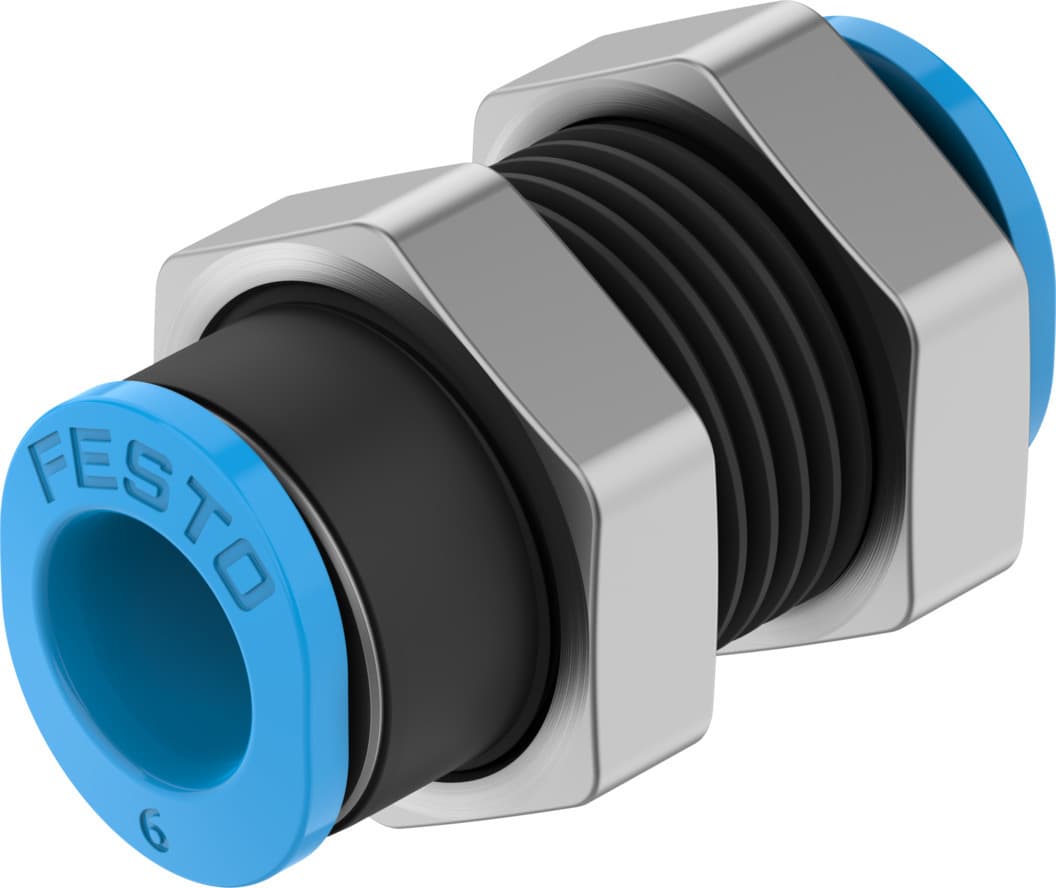

- 1The Festo QSMS-6-100 is a high-quality push-in bulkhead connector designed for pneumatic applications, featuring a nominal size of 3.7 mm and a pressure range of -0.95 bar to 6 bar.
- 2This connector is part of the QS series and offers a push-pull principle for easy installation, making it suitable for a wide range of tasks with its highly resistant materials.
- 3The QSMS-6-100 is compatible with compressed air as per ISO 8573-1:2010 and can operate with oil lubrication, ensuring reliable performance in various conditions.
- 4With a corrosion resistance class of CRC 1 and LABS (PWIS) conformity, this connector meets high standards for durability and resistance to corrosion.
- 5Available in packs of 100, the QSMS-6-100 is an attractive and flexible solution for standard applications, offering maximum flexibility and ease of installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 3.7mm |
| Mounting position | Any | Design | Bulkhead |
| Pack size | 100 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Product weight | 9g |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Aluminum, anodized | Releasing ring material | POM |
| Nut material | Brass, nickel-plated | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130781 |
Specifications may be subject to change without notice
