Product Model

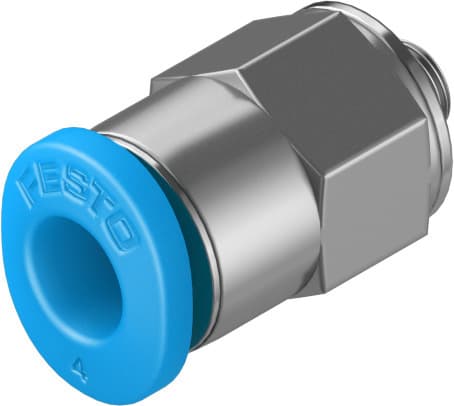

qsm-m3-4-100

Manufacturer

Festo

Key Features

1High-Quality Construction: The Festo QSM-M3-4-100 is made from nickel-plated steel, ensuring durability and resistance to corrosion.
2Versatile Design: This push-in fitting features a straight design with a 1.5mm internal hex thread, making it suitable for various pneumatic applications.
3Easy Installation: The push-pull principle design allows for easy installation, reducing the need for specialized tools.
4Temperature and Pressure Range: The QSM-M3-4-100 operates within a temperature range of -10°C to 80°C and supports pressures up to 6 bar, making it versatile for different environments.
5Compliant with Standards: Meets ISO 8573-1:2010 standards for compressed air and is RoHS compliant, ensuring it meets environmental regulations.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	1.1mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	100
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	0.48Nm	Tolerance for nominal tightening torque	± 55%
Product weight	2.4g	Type of mounting	External hexagon, AF 8
Pneumatic connection 1	External thread M3	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Steel, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130776
