Product Model

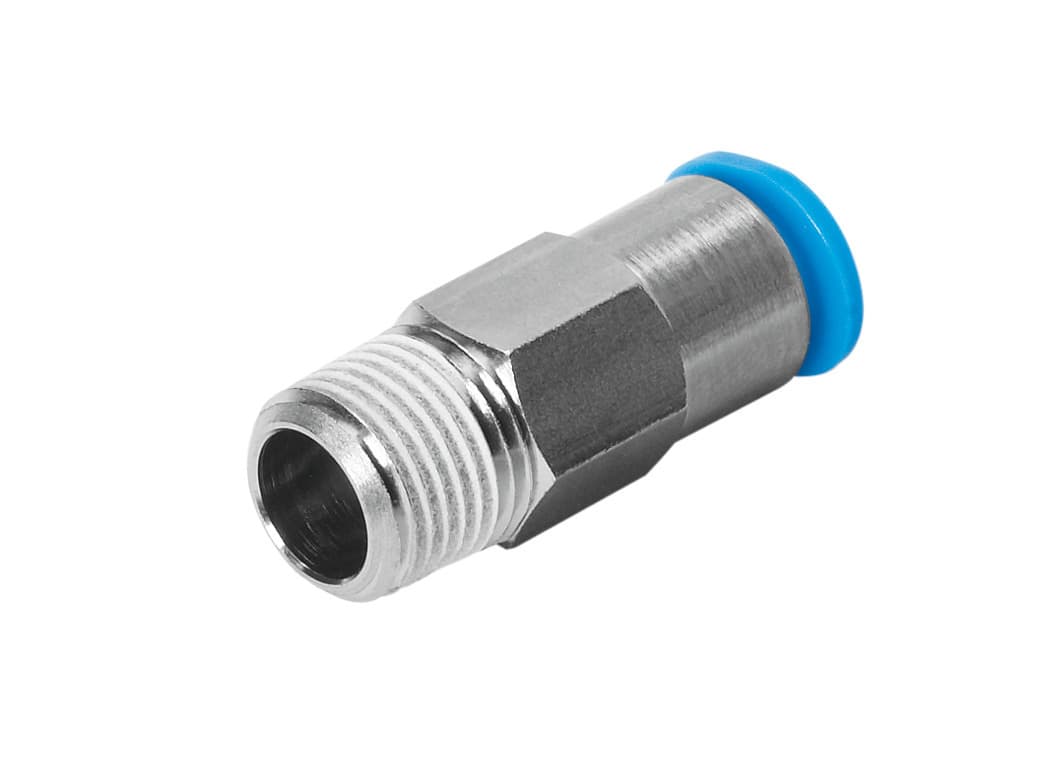

qsmk-1/4-1/4-u
Key Features
- 1The QSMK-1/4-1/4-U features a self-sealing design for easy and secure connections.
- 2With a corrosion resistance class of 1, it offers low corrosion stress in various operating conditions.
- 3Compatible with oil lubrication, enhancing the durability and efficiency of the fitting.
- 4Suitable for ambient temperatures from -10°C to 60°C, ensuring versatility in different environments.
- 5Weighing only 24 grams, it is compact and easy to handle in pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Max. tightening torque | 14Nm | Product weight | 24g |
| Type of mounting | External hexagon 9/16 | Pneumatic connection 1 | external thread 1/4 NPT |
| Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" | Ambient temperature Fahrenheit | 14°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | Brass Nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 190712 |
Specifications may be subject to change without notice
