Product Model

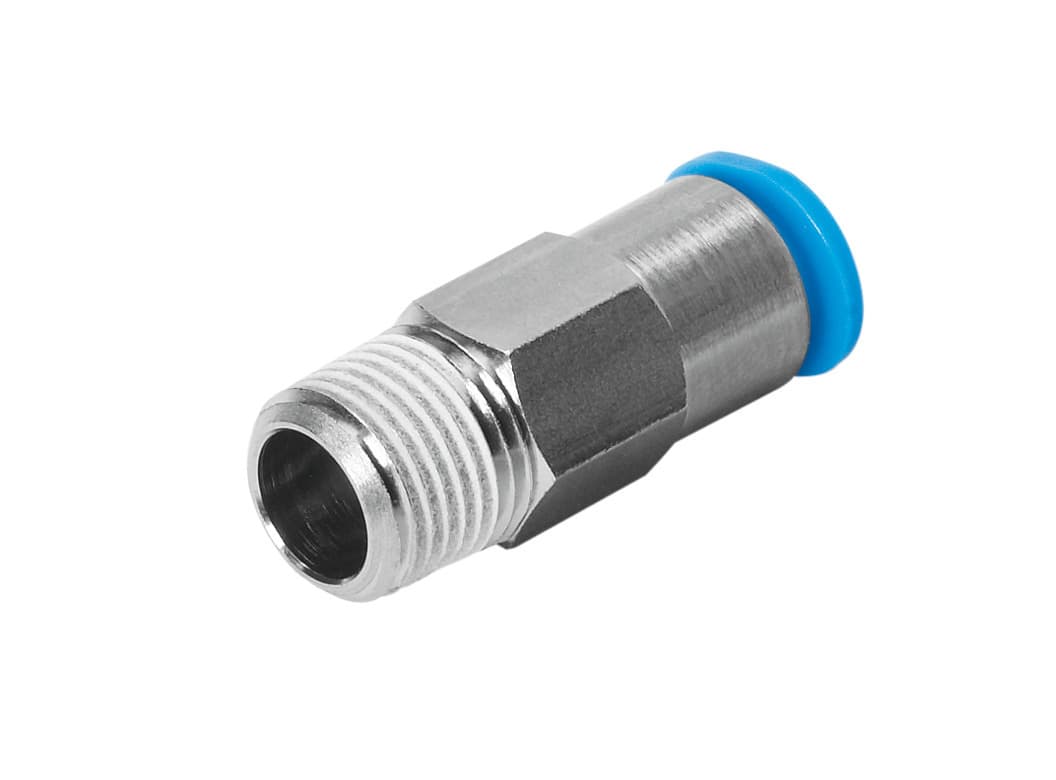

qsmk-10-32-unf-5/32-u
Key Features
- 1Compact and lightweight design with a nominal width of 1.4 mm.
- 2Sealing ring for secure and leak-free connections.
- 3Straight design for easy installation and minimal space requirements.
- 4Operating pressure range from -0.095 MPa to 1 MPa, suitable for various applications.
- 5Compatible with compressed air as per ISO 8573-1:2010, ensuring high-quality performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 1.4mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Max. tightening torque | 1.5Nm | Product weight | 7g |
| Type of mounting | External hexagon 3/8 | Pneumatic connection 1 | External thread 10-32 UNF-2A |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 5/32" | Ambient temperature Fahrenheit | 14°F 140°F |
| Releasing ring color | Gray | Note on materials | RoHS-compliant |
| Housing material | Brass Nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 190704 |
Specifications may be subject to change without notice
