Product Model

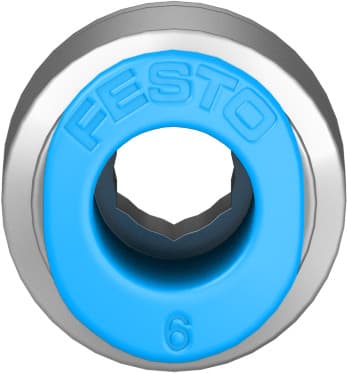

qsm-g1/8-6-i
Key Features
- 1The Festo QSM-G1/8-6-I push-in fitting ensures a secure and reliable connection for pneumatic systems, ideal for compressed air applications.
- 2With a mini size and nominal width of 4.1 mm, this fitting is perfect for space-constrained applications, making it versatile for various industrial setups.
- 3Equipped with a sealing ring, this push-in fitting provides excellent sealing performance, ensuring minimal leakage and maintaining system integrity.
- 4The QSM-G1/8-6-I supports operating pressures from -0.95 to 6 bar and operates within an ambient temperature range of -10 to 80°C, making it suitable for diverse environmental conditions.
- 5Classified as CRC 1 (Low corrosion stress), this fitting is designed to withstand moderate corrosive environments, ensuring long-lasting performance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Nominal width | 4.1mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 9.5g | Type of mounting | Internal hexagon, AF 4 |
| Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 186267 |
Specifications may be subject to change without notice
