Product Model

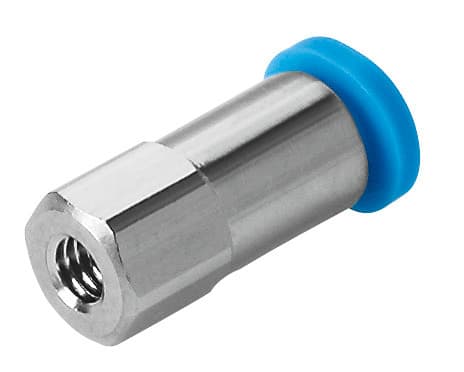

qsmf-m3-4

Manufacturer

Festo

Key Features

1The Festo QSMF-M3-4 push-in fitting offers quick and simple installation, making it a convenient choice for pneumatic applications.
2This fitting can operate between -10°C and +80°C, ensuring reliability across various environmental conditions.
3Made from robust, nickel-plated brass, the QSMF-M3-4 provides high resistance to corrosion, ensuring long-lasting performance.
4With a threaded-to-tube connection style, this fitting is suitable for various pneumatic applications, including compressed air and water.
5The QSMF-M3-4 meets ISO 8573-1:2010 standards for compressed air and is RoHS compliant, ensuring it meets industry requirements.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	2.1mm
Type of seal on screwed plug	Sealing ring	Mounting position	Any
Design	Straight design	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	0.48Nm	Tolerance for nominal tightening torque	± 55%
Product weight	4.1g	Type of mounting	External hexagon, AF 8
Pneumatic connection 1	Internal thread M3	Pneumatic connection 2	for pneumatic tubing outside diameter 4 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153310
