Product Model

qsm-6-100

Manufacturer

Festo

Key Features

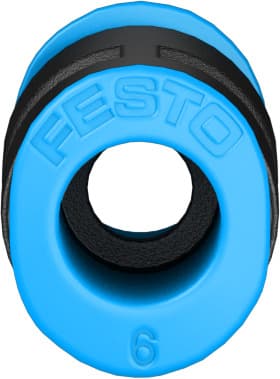

1The Festo QSM-6-100 is a miniature push-in connector designed for pneumatic applications, featuring a nominal size of 3.7 mm and operating pressure up to 6 bar.
2This connector is made from high-quality materials, including PBT for the body and POM for the release ring, ensuring durability and corrosion resistance.
3The QSM-6-100 is easy to install due to its optimized bending radius and push-pull design, making it suitable for a wide range of tasks.
4The connector operates within a temperature range of -10°C to 80°C and is compatible with compressed air according to ISO 8573-1:2010, making it versatile for various environments.
5The Festo QSM-6-100 is attractively priced and highly resistant to abrasion, making it an excellent choice for dynamic applications where reliability is crucial.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	3.7mm
Mounting position	Any	Design	Straight design
Pack size	100	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 80°C	Product weight	4g
Pneumatic connection 1	For pneumatic tubing outside diameter 6 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130759

Specifications may be subject to change without notice
