Product Model

qsm-1/8-6-i

Manufacturer

Festo

Key Features

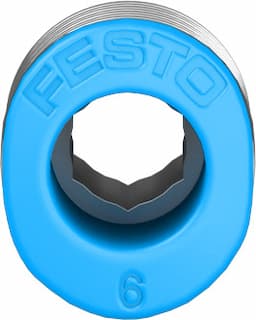

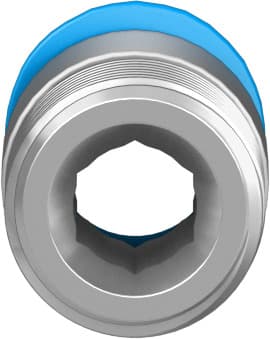

1The Festo QSM-1/8-6-I push-in fitting is designed for miniature pneumatic connections, featuring a nominal size of 4.1 mm and a straight design.
2This fitting includes a PTFE pre-coated thread for enhanced sealing and durability, ensuring reliable connections in various applications.
3The QSM-1/8-6-I offers optional mounting positions, allowing for flexible installation in different pneumatic systems.
4Available in packs of 10, this fitting is convenient for bulk purchases and easy integration into your pneumatic setup.
5The QSM-1/8-6-I is part of the QS series from Festo, known for its high-quality pneumatic fittings that meet stringent technical standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Mini	Nominal width	4.1mm
Type of seal on screwed plug	Coating	Mounting position	Any
Design	Straight design	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 80°C
Nominal tightening torque	7Nm	Tolerance for nominal tightening torque	± 20%
Product weight	5.6g	Type of mounting	Internal hexagon, AF 4
Pneumatic connection 1	External thread R1/8	Pneumatic connection 2	for pneumatic tubing outside diameter 6 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	Brass, nickel-plated	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153318
