Product Model
qslv-g1/8-4-100
Key Features

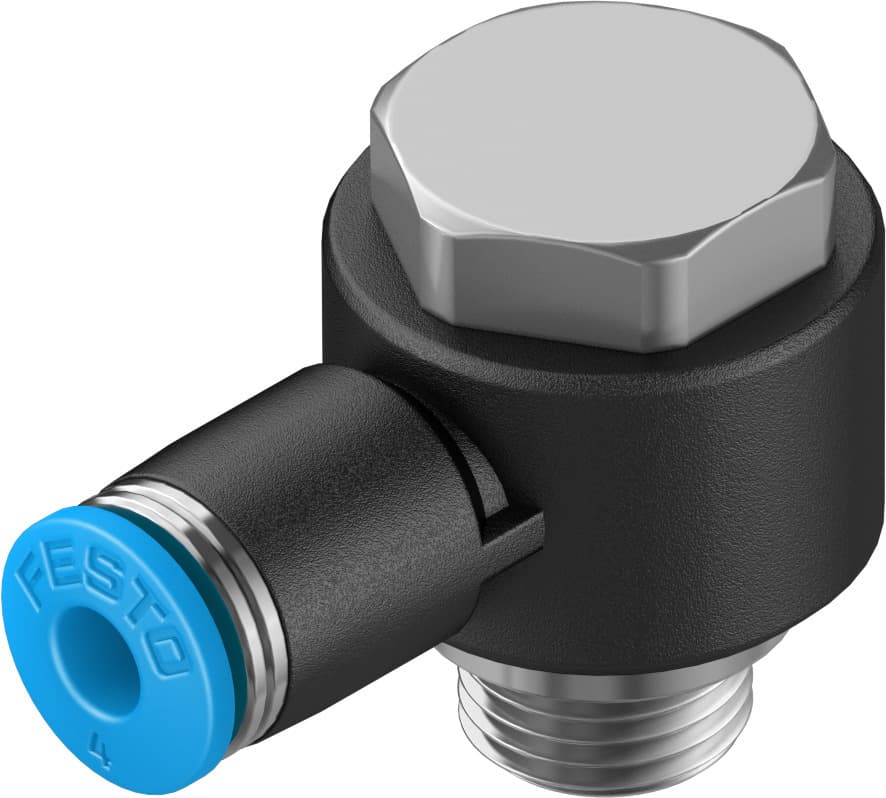

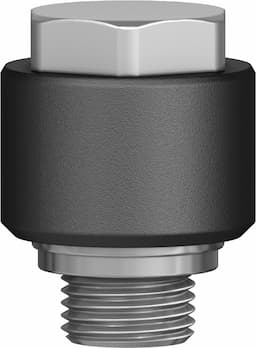

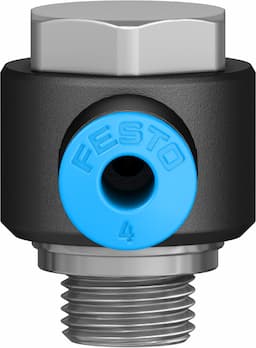

- 1The Festo QSLV-G1/8-4-100 features a push-in L-fitting design with a male thread G1/8 for easy and secure connections to 4 mm OD tubing.
- 2This fitting operates within a temperature range of -10°C to 80°C and supports pressures up to 6 bar, making it suitable for various industrial environments.
- 3Made from high-quality materials including PBT (Polybutylene Terephthalate) for the housing and nickel-plated brass for the hollow bolt, ensuring durability and resistance to corrosion.
- 4The fitting is designed with a hollow bolt featuring an external hex for easy mounting and a sealing ring for secure connections, reducing installation time and effort.
- 5Meets international standards including ISO 8573-1:2010 for compressed air and is compliant with RoHS regulations, ensuring it meets the highest quality and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 3mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 22g | Type of mounting | Hollow bolt with external hex |
| Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132060 |
Specifications may be subject to change without notice
