Product Model

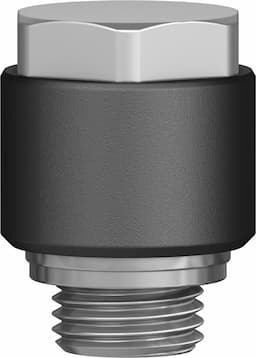

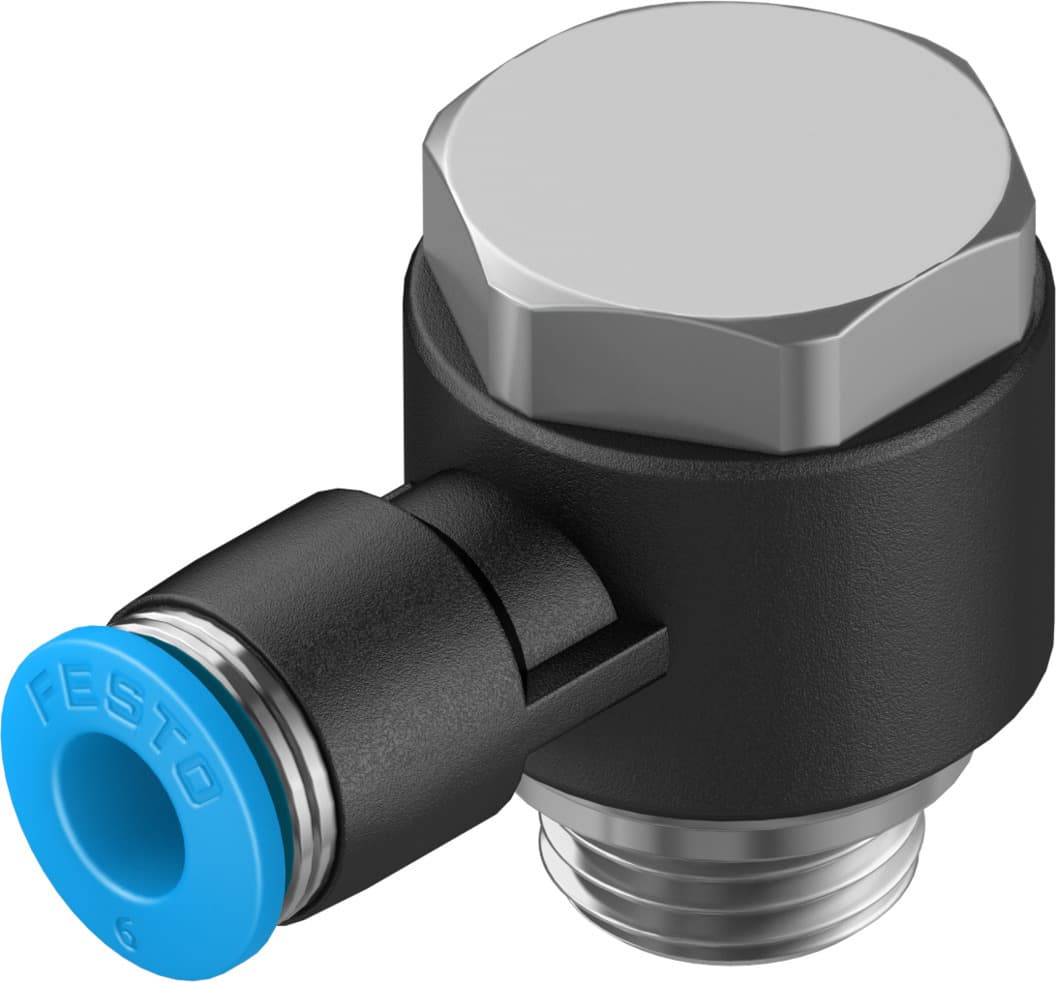

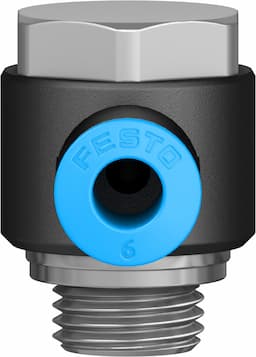

qslv-g1/4-6-100
Key Features
- 1The Festo QSLV-G1/4-6-100 is a high-quality push-in L-fitting designed for pneumatic systems, ensuring reliable and efficient connections.
- 2This fitting features a nominal size of 5 mm and operates within a temperature range of -10°C to 80°C, making it suitable for various industrial applications.
- 3The QSLV-G1/4-6-100 supports both compressed air and water (liquid, ice-free) as operating mediums, adhering to ISO 8573-1:2010 standards.
- 4With a nominal torque of 9 Nm and a tolerance of ±20%, this fitting ensures secure and consistent connections in pneumatic systems.
- 5The product is RoHS-compliant, made from PBT housing, nickel-plated brass hollow bolt, and POM release ring, ensuring durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 44g | Type of mounting | Hollow bolt with external hex |
| Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132063 |
Specifications may be subject to change without notice
