Product Model
qsl-g3/8-12-20
Key Features

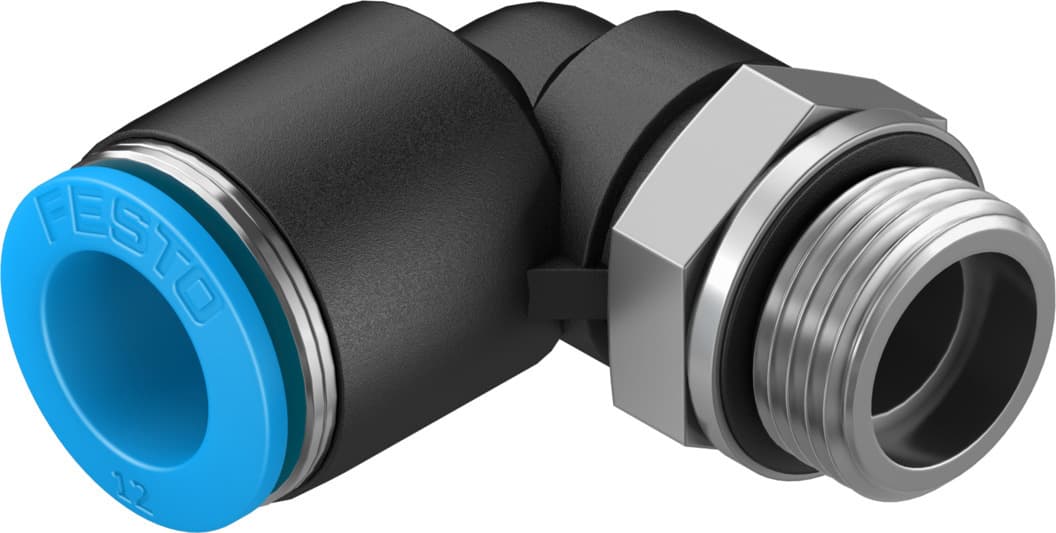

- 1The Festo QSL-G3/8-12-20 push-in L-fitting is designed for use with compressed air and water, ensuring reliable operation in various industrial settings.
- 2This fitting features a nominal size of 10 mm and operates within a temperature range of -10°C to 80°C, making it suitable for a wide range of applications.
- 3The QSL-G3/8-12-20 boasts a corrosion resistance class of CRC 1, indicating low corrosion stress and durability in harsh environments.
- 4The push-in L-fitting is compatible with cleanroom class 4 according to ISO 14644-1, ensuring it meets stringent cleanliness standards in controlled environments.
- 5With a nominal torque of 15.5 Nm and a tolerance of ±20%, the QSL-G3/8-12-20 is easy to install and maintain, reducing downtime and increasing efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 10mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 20 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 37g | Type of mounting | External hexagon, AF 20 |
| Pneumatic connection 1 | External thread G3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132057 |
Specifications may be subject to change without notice
