Product Model
qsl-g1/8-6-100
Key Features

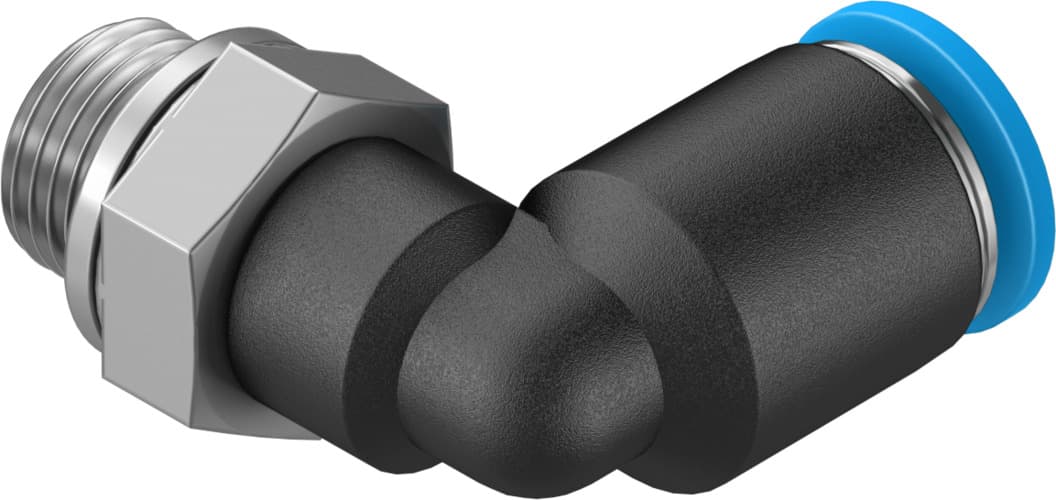

- 1The Festo QSL-G1/8-6-100 push-in L-fitting features a male thread G1/8 for easy connection to pneumatic systems, ensuring reliable and efficient operation.
- 2This push-in fitting is designed with a 6mm PTC metric connection, making it versatile for various pneumatic applications and tubing sizes.
- 3The QSL-G1/8-6-100 is constructed from nickel-plated brass for the threaded portion and plastic for the body, ensuring durability and resistance to corrosion.
- 4With a sealing ring for secure connections, this fitting operates within a temperature range of -10°C to 80°C and supports pressures up to 6 bar, making it suitable for diverse industrial environments.
- 5The product is RoHS-compliant, making it environmentally friendly, and is available in packs of 100 pieces, ensuring you have a reliable supply for your pneumatic needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.2mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 14g | Type of mounting | External hexagon, AF 13 |
| Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132049 |
