Product Model
qsl-g1/4-10-50
Key Features

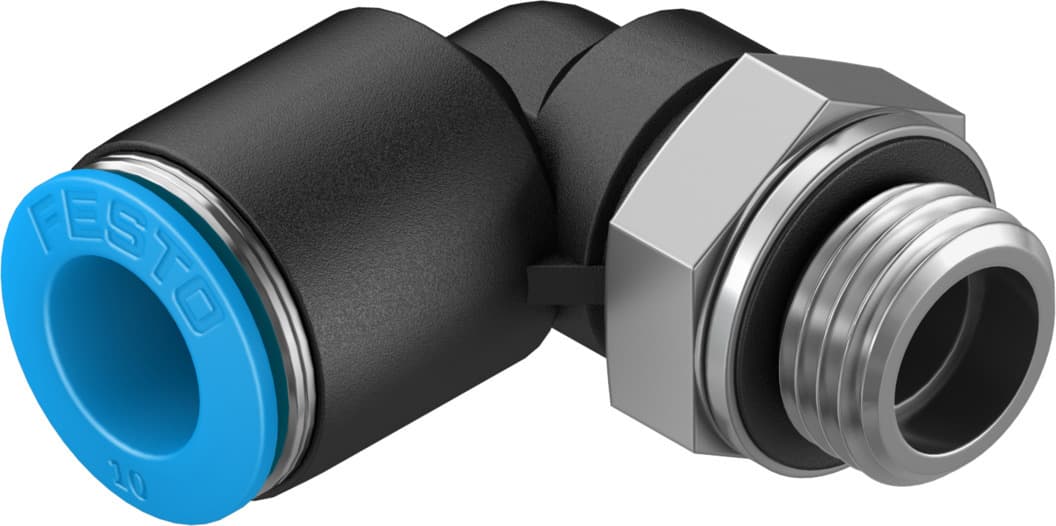

- 1The Festo QSL-G1/4-10-50 push-in L-fitting is designed with a push-pull principle, ensuring easy and secure connections. It features a male thread G1/4 and is compatible with hoses of 10 mm exterior diameter.
- 2This fitting supports a wide operating pressure range of -0.95 to 6 bar at any temperature, making it suitable for various industrial applications.
- 3The QSL-G1/4-10-50 is constructed from high-quality materials, including PBT for the housing, POM for the sleeve, and NBR for the tube seal. It also features a corrosion-resistant design with a classification of CRC 1.
- 4This push-in fitting is 360° orientable, allowing for flexible installation in any position. It is also compatible with both compressed air (ISO 8573-1:2010) and water, as per the manufacturer's declaration.
- 5The Festo QSL-G1/4-10-50 push-in L-fitting is available in packs of 50 units and is compliant with RoHS regulations. It weighs 26 grams per piece and has a nominal tightening torque of 9 Nm with a tolerance of ±20%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 8mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | L-shape | Pack size | 50 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 26g | Type of mounting | External hexagon, AF 17 |
| Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132053 |
