Product Model

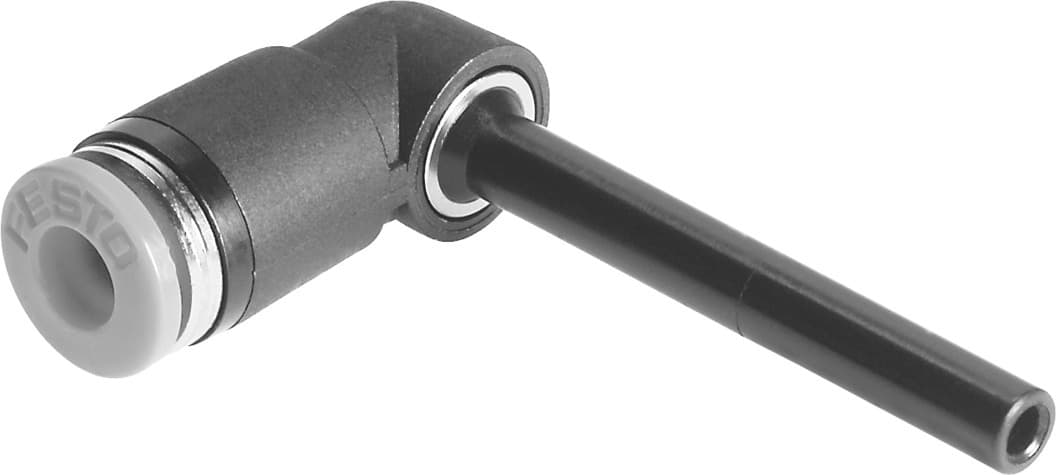

qsl-1/4h-5/32-u
Key Features
- 1Standard size of 2.4mm for precise connections.
- 2Push-pull principle design for easy assembly and disassembly.
- 3Operating pressure range of -0.95 to 10 bar for versatile use.
- 4Compressed air compatibility with ISO 8573-1:2010.
- 5Low corrosion stress with CRC classification of 1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.4mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Product weight | 3.7g |
| Pneumatic connection 1 | Push-in sleeve ? 1/4" | Pneumatic connection 2 | for pneumatic tubing outside diameter 5/32" |
| Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190628 |
Specifications may be subject to change without notice
