Product Model
qsl-1/4-6-100
Key Features

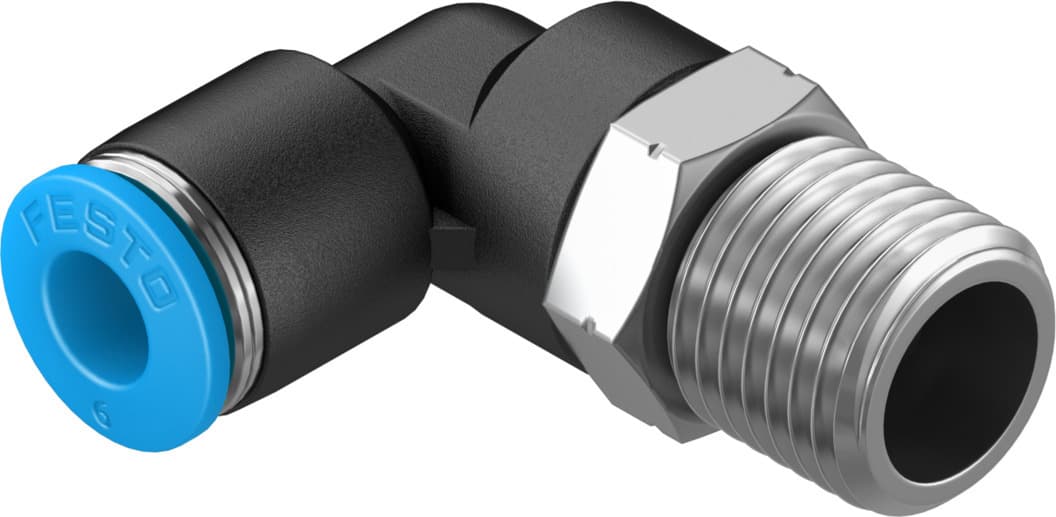

- 1Reliable Pneumatic Connection - The Festo QSL-1/4-6-100 push-in L-fitting ensures secure and leak-free connections for compressed air and water applications, making it ideal for various industrial uses.
- 20° Orientable Design - This fitting allows for 360° orientation, providing flexibility in installation and reducing the risk of misalignment, ensuring smooth operation in any mounting position.
- 3Low Corrosion Resistance - With a corrosion resistance classification of CRC 1, this fitting is designed to withstand low corrosion stress, ensuring durability in harsh environments.
- 4Operating Pressure Range - The QSL-1/4-6-100 supports an operating pressure range of -0.95 to 6 bar, making it suitable for a variety of pneumatic systems and applications.
- 5Easy Installation - Featuring a push-pull principle and a standard nominal size of 4.3 mm, this fitting is easy to install and requires minimal effort, reducing downtime and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | L-shape | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 19g | Type of mounting | External hexagon, AF 14 |
| Pneumatic connection 1 | External thread R1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130731 |
Specifications may be subject to change without notice
