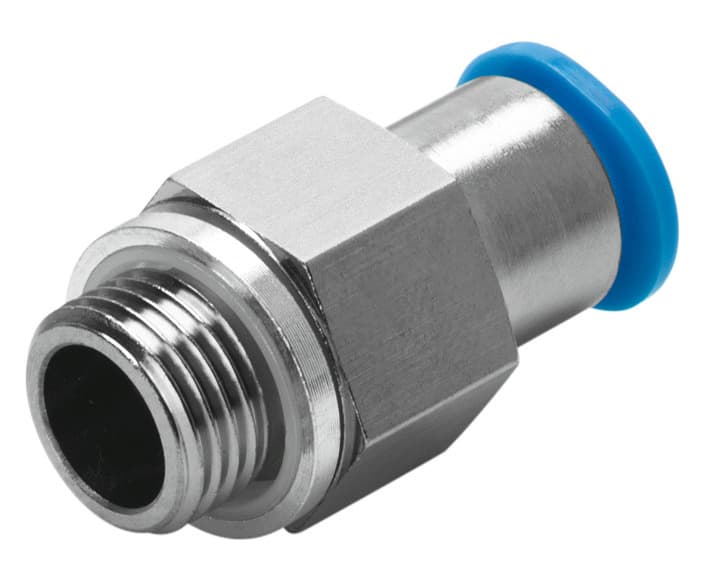

Product Model
qsk-g1/4-10
Key Features
- 1The Festo QSK-G1/4-10 push-in fitting is designed for easy and secure connections in pneumatic systems, ensuring reliable operation and minimal leakage.
- 2Made from nickel-plated brass, this fitting offers excellent durability and resistance to corrosion, making it suitable for a wide range of industrial environments.
- 3With a maximum operating pressure of 6 bar, the QSK-G1/4-10 is capable of handling high-pressure applications, providing consistent performance under demanding conditions.
- 4The self-sealing design of the QSK-G1/4-10 ensures that connections remain tight and secure, reducing the risk of air leaks and maintaining system efficiency.
- 5The Festo QSK-G1/4-10 is RoHS compliant, meeting international standards for environmental sustainability and ensuring a greener, more eco-friendly solution for your pneumatic needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.8mm |
| Approved tubing type | PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- | Tubing insertion depth | 24.7mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 33g | Type of mounting | External hexagon, AF 17 |
| Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 186300 |
Specifications may be subject to change without notice
