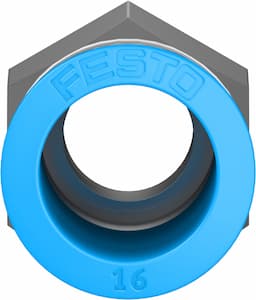

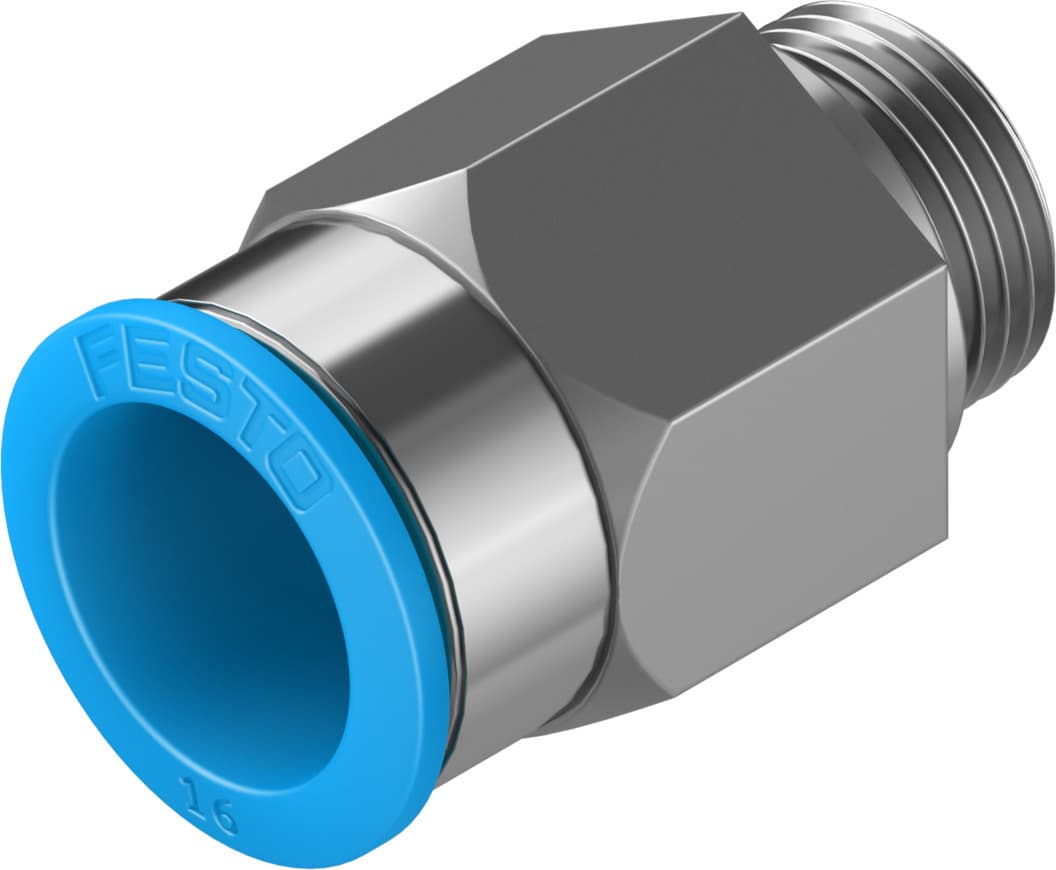

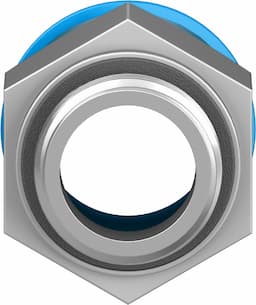

Product Model
qs-g3/8-16
Key Features
- 1The Festo QS-G3/8-16 push-in fitting offers quick and simple installation, making it a convenient choice for pneumatic applications.
- 2This fitting operates within a wide temperature range of -10°C to +80°C and supports air pressures up to 14 bar.
- 3Made from robust, solid nickel-plated brass, the QS-G3/8-16 provides high resistance to corrosion and is RoHS compliant.
- 4Available with a variety of thread and diameter connector sizes, this fitting is suitable for various pneumatic connections.
- 5Equipped with a sealing ring, the QS-G3/8-16 ensures reliable connections and prevents leaks in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 11mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 45g |
| Type of mounting | External hexagon, AF 22 | Pneumatic connection 1 | External thread G3/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 16 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186347 |
Specifications may be subject to change without notice
