Product Model

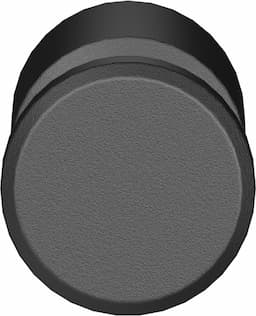

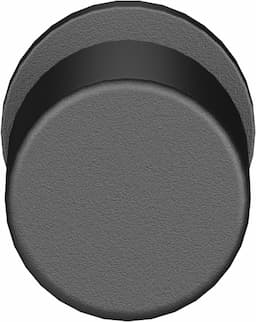

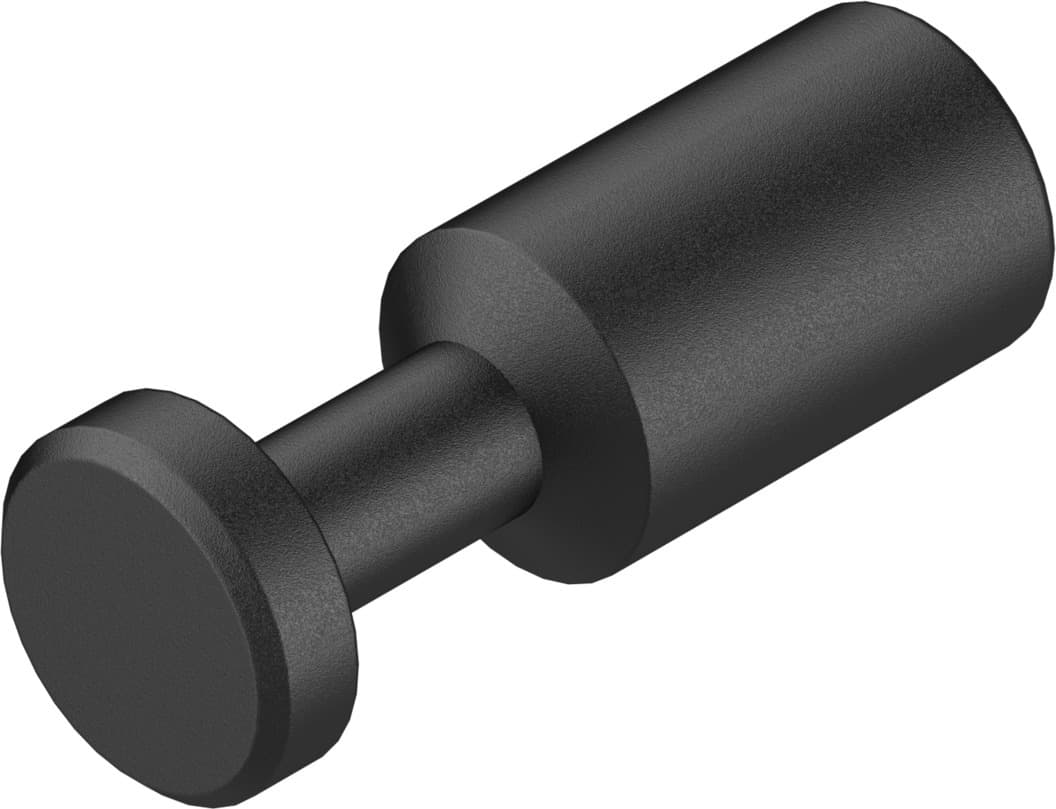

qsc-5/8h-u
Key Features
- 1Weighs only 4 grams, ideal for space-sensitive applications.
- 2Suitable for any mounting position, offering flexibility in installation.
- 3Operates effectively between -0.095 MPa and 1 MPa, ensuring robust performance.
- 4Low corrosion stress with a corrosion resistance class of 1, ensuring durability.
- 5RoHS-compliant and made from PBT housing material for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Mounting position | Any |
| Design | Blanking plug | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Product weight | 4g | Pneumatic connection 1 | Push-in sleeve ? 5/8" |
| Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
| Note on materials | RoHS-compliant | Housing material | PBT |
| Manufacturer ID | 190640 |
Specifications may be subject to change without notice
