Product Model

qsc-12-20

Manufacturer

Festo

Key Features

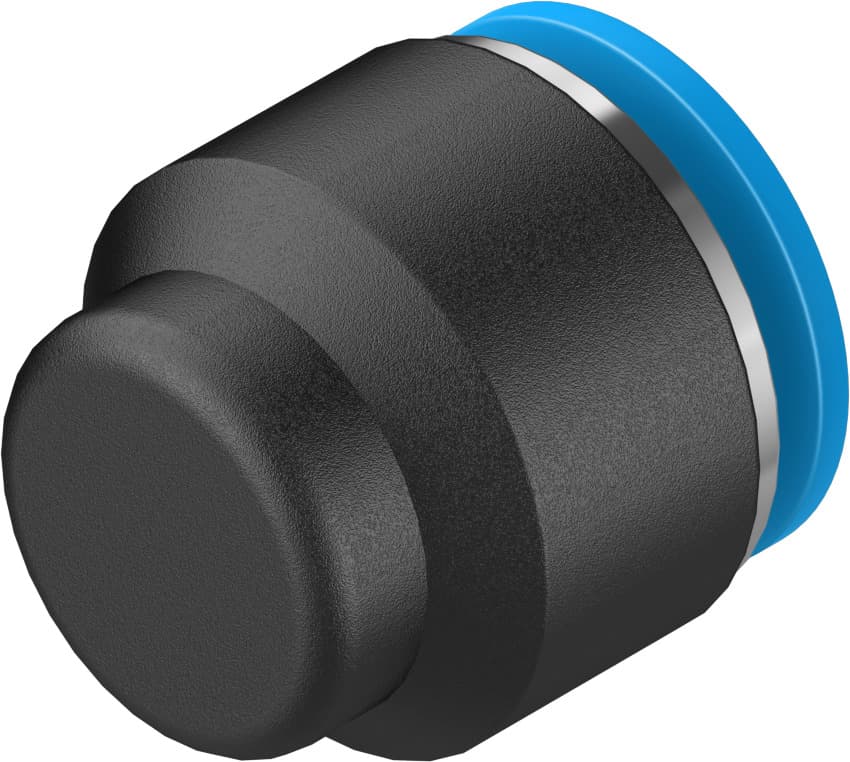

1The QSC-12-20 push-in cap is designed to fit standard pneumatic tubing with a 12mm outside diameter, making it versatile for various applications.
2This cap operates within a wide temperature range, supporting pressures from -0.95 to 6 bar, and up to 14 bar under temperature-dependent conditions.
3Made from PBT and POM materials, the cap is RoHS compliant and suitable for use in environments requiring low corrosion stress.
4The QSC-12-20 is compatible with compressed air as per ISO 8573-1:2010 and water according to manufacturer's declaration, ensuring reliable operation in diverse media.
5Featuring a push-pull principle, this cap is easy to install and remove, making it convenient for maintenance and setup in various industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Mounting position	Any
Design	Blanking plug	Pack size	20
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 4 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Product weight	11.5g	Pneumatic connection 1	for pneumatic tubing outside diameter 12 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130708

Specifications may be subject to change without notice
