Product Model

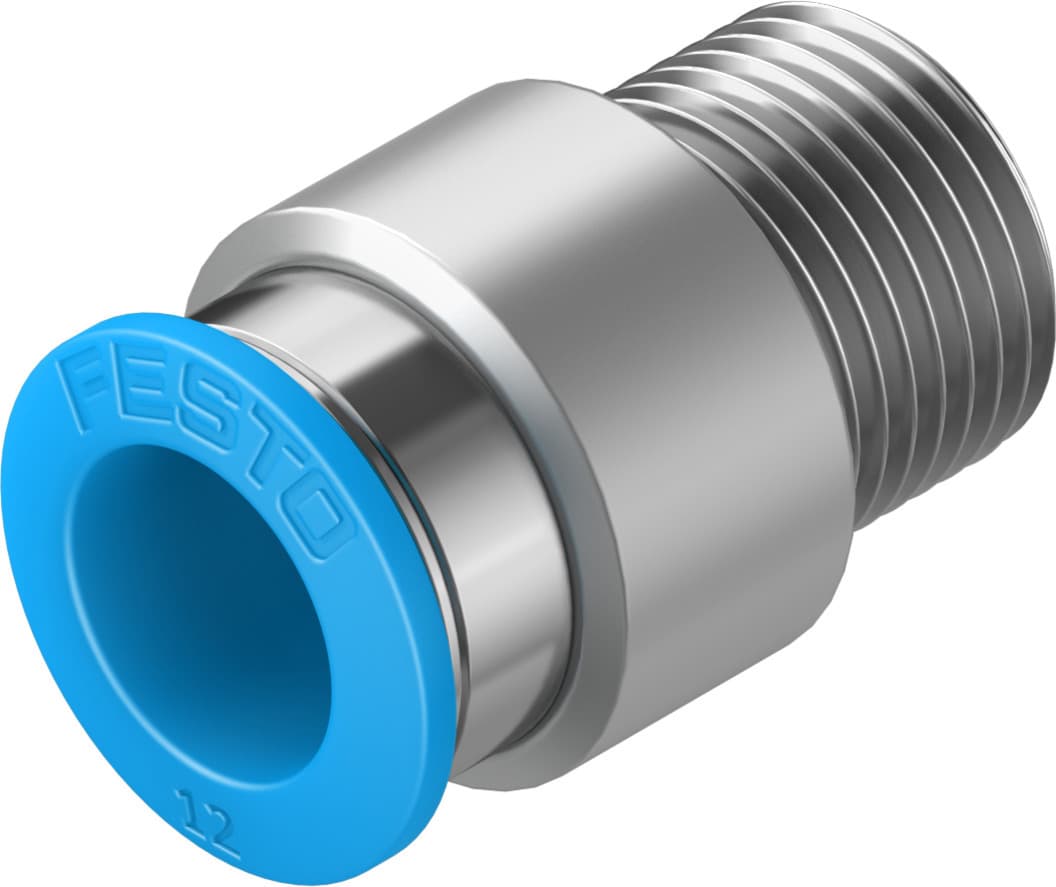

qs-3/8-12-i
Key Features
- 1The Festo QS-3/8-12-I push-in fitting ensures secure and efficient pneumatic connections, ideal for various industrial applications.
- 2Made from nickel-plated brass, this fitting offers excellent durability and resistance to corrosion, ensuring long-lasting performance.
- 3With a straight design and constant installation depth, the QS-3/8-12-I is easy to install, reducing setup time and improving productivity.
- 4The push-in fitting features a replaceable sealing ring, allowing for multiple uses and minimizing maintenance costs.
- 5Operating within a temperature range of -10 to 80°C, this fitting is suitable for a variety of environments, from cold storage to high-temperature applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 8.4mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 10 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Nominal tightening torque | 15.5Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 31g |
| Type of mounting | Internal hexagon, AF 8 | Pneumatic connection 1 | External thread R3/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153020 |
Specifications may be subject to change without notice
