Product Model
qs-1/8-8-i-50
Key Features

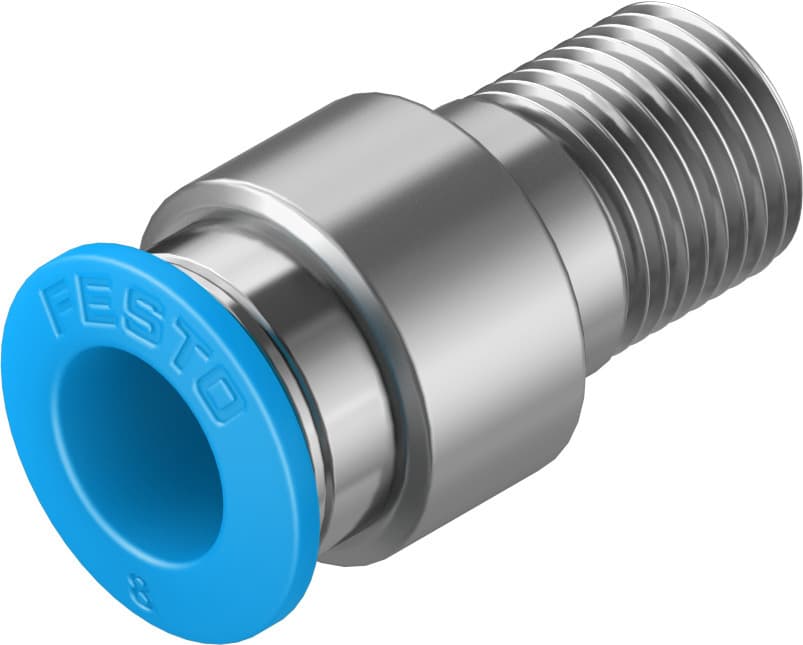

- 1The Festo QS-1/8-8-I-50 push-in fitting is designed with a straight design and a push-pull principle, ensuring easy and secure connections in various applications.
- 2This fitting features a coating seal on the screwed plug, providing excellent corrosion resistance and durability in harsh environments.
- 3The QS-1/8-8-I-50 supports a wide operating pressure range from -0.95 to 6 bar, making it suitable for various pneumatic systems and applications.
- 4With a nominal width of 5.3 mm and a packing size of 50, this fitting is compact and efficient, ideal for use in tight spaces and high-volume installations.
- 5The material housing is made from brass with a nickel plating, ensuring RoHS compliance and high corrosion resistance, while the release ring is made from POM (Polyoxymethylene).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 50 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 8.8g |
| Type of mounting | Internal hexagon, AF 5 | Pneumatic connection 1 | External thread R1/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 133187 |
Specifications may be subject to change without notice
