Product Model

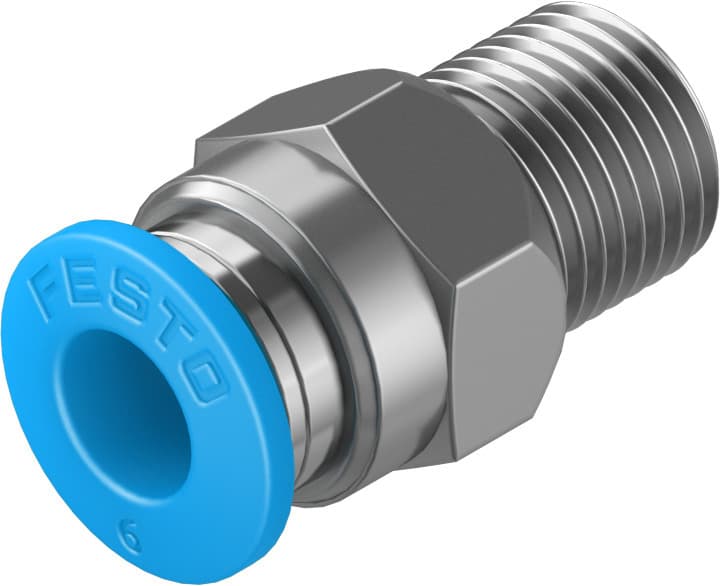

qs-1/8-6-100
Key Features
- 1The QS-1/8-6-100 push-in fitting is designed to handle operating pressures up to 6 bar, making it ideal for demanding pneumatic applications.
- 2With an optional mounting position and a push-pull principle, this fitting can be easily installed in various configurations, enhancing flexibility in system design.
- 3Featuring a corrosion resistance class of CRC 1, this fitting offers low corrosion stress, ensuring durability in harsh environments.
- 4Constructed from high-quality materials like brass with a nickel plating, POM release ring, and NBR tubing seal, this fitting ensures reliability and longevity.
- 5The lubricated operation possible feature makes maintenance easier, reducing wear and tear on the fitting, and extending its lifespan.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Nominal tightening torque | 7Nm | Tolerance for nominal tightening torque | ± 20% |
| Product weight | 8.2g | Type of mounting | External hexagon, AF 12 |
| Pneumatic connection 1 | External thread R1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130675 |
Specifications may be subject to change without notice
