Product Model
qs-1/8-4-i-100
Key Features

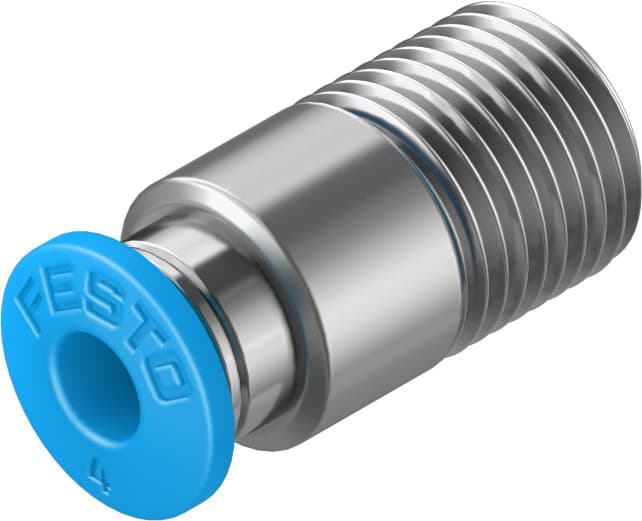

- 1The FESTO QS-1/8-4-I-100 push-in fitting is designed for standard pneumatic applications, ensuring reliable and efficient connections in various industrial settings.
- 2This fitting features a coating on the screw-in stud, providing enhanced sealing and durability, making it suitable for a wide range of pneumatic systems.
- 3The QS-1/8-4-I-100 push-in fitting can be used in any assembly position, offering flexibility and ease of installation in complex pneumatic setups.
- 4With a nominal size of 2.6 mm and a standard container size of 100, this fitting is ideal for applications requiring precise component density in confined spaces.
- 5The replaceable sealing ring ensures the QS-1/8-4-I-100 can be reused multiple times, reducing maintenance costs and increasing the overall efficiency of your pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.6mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 6.6g |

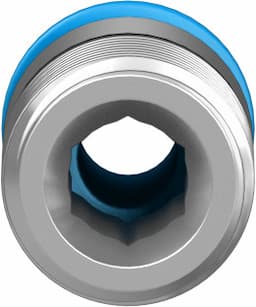

| Type of mounting | Internal hexagon, AF 2.5 | Pneumatic connection 1 | External thread R1/8 |

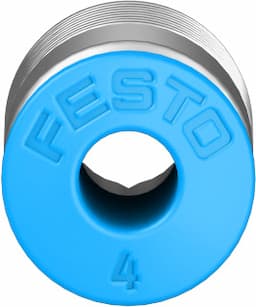

| Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 133191 |
Specifications may be subject to change without notice
