Product Model
qs-1/4-6-i-100
Key Features

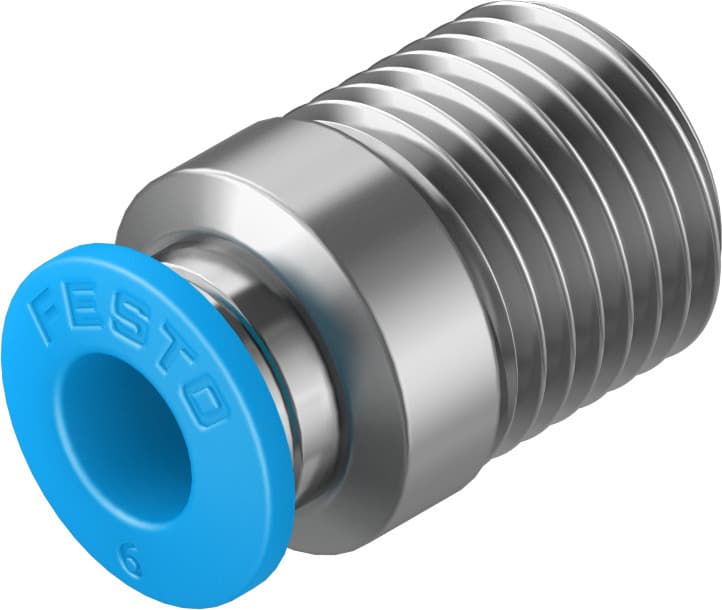

- 1The Festo QS-1/4-6-I-100 push-in fitting ensures reliable pneumatic connections with a nominal size of 4.2 mm, suitable for various industrial applications.
- 2This push-in fitting features a straight design and push-pull principle, making it easy to install and use in both standard and temperature-dependent operating pressures.
- 3The QS-1/4-6-I-100 is designed for use with compressed air to ISO 8573-1:2010 and water, offering a corrosion resistance class of CRC 1 and meeting LABS (PWIS) conformity VDMA24364-B1/B2-L.
- 4With an ambient temperature range of -10 °C to 80 °C and a product weight of 13 g, this fitting is versatile and lightweight, making it ideal for various industrial environments.
- 5The Festo QS-1/4-6-I-100 push-in fitting is RoHS-compliant, ensuring it meets environmental standards, and is available in packs of 100 units for convenient ordering.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 4.2mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 100 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 13g |
| Type of mounting | Internal hexagon, AF 4 | Pneumatic connection 1 | External thread R1/4 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 133193 |
Specifications may be subject to change without notice
