Product Model
qs-1/4-10-i-50
Key Features

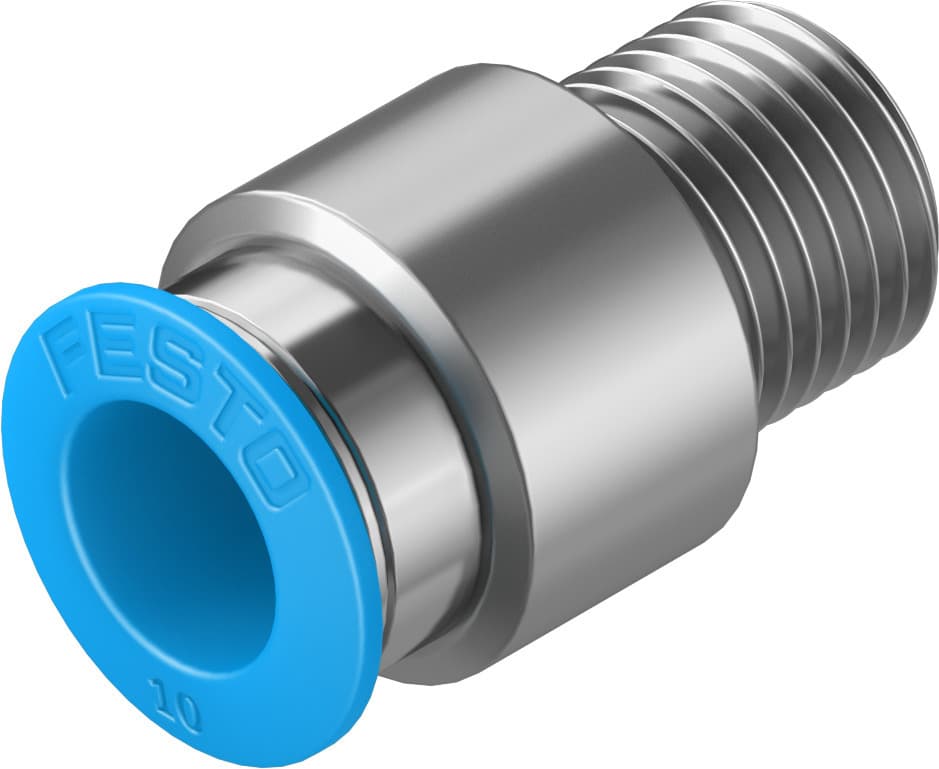

- 1The Festo QS-1/4-10-I-50 push-in fitting is designed for standard 6.3 mm nominal size, ensuring compatibility with a wide range of pneumatic systems.
- 2This fitting features a coating seal on the screw-in stud, providing reliable and durable performance in various operating conditions.
- 3The QS-1/4-10-I-50 is versatile, allowing for any assembly position, making it suitable for diverse applications and configurations.
- 4With a container size of 50, this push-in fitting is convenient for bulk purchases and easy storage, ensuring you have the necessary components on hand.
- 5The Festo QS-1/4-10-I-50 is part of Festo's comprehensive range of pneumatic connectors and fittings, offering high-quality solutions for industrial automation applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.3mm |
| Type of seal on screwed plug | Coating | Mounting position | Any |
| Design | Straight design | Pack size | 50 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 20g |
| Type of mounting | Internal hexagon, AF 6 | Pneumatic connection 1 | External thread R1/4 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
| Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
| Releasing ring material | POM | Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 133188 |
Specifications may be subject to change without notice
