Product Model

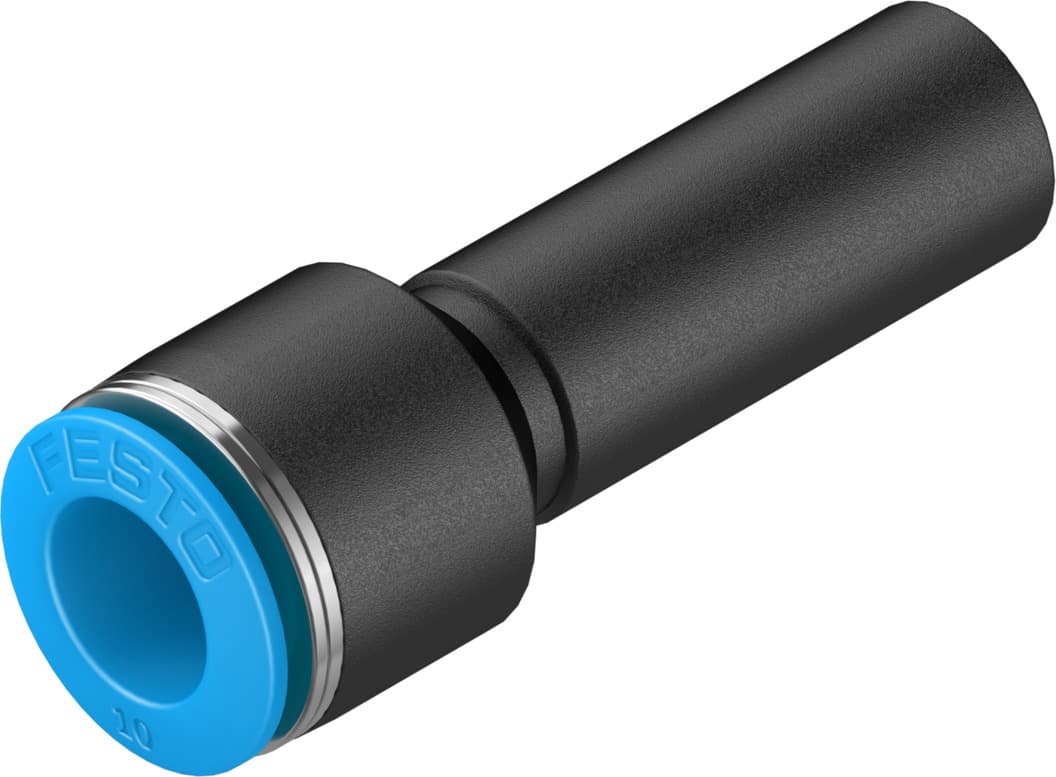

qs-12h-10-20
Key Features
- 1Standard Size and Design: The Festo QS-12H-10-20 push-in connector features a standard size of 6.3 mm nominal width with a straight design, making it versatile for various applications.
- 2Operational Pressure Range: This connector operates within a wide pressure range of -0.095 MPa to 0.6 MPa (or -13.775 psi to 87 psi) for the entire temperature range, ensuring reliable performance.
- 3Corrosion Resistance: With a corrosion resistance class of 1 (low corrosion stress), the QS-12H-10-20 is suitable for use in environments where corrosion is a concern. It also meets VDMA24364-B1/B2-L LABS (PWIS) conformity.
- 4Material Compatibility: The connector is made from RoHS-compliant PBT housing material and POM release ring, ensuring durability and compliance with environmental regulations. It also features a high-alloy stainless steel tubing clamp component.
- 5Versatile Operating Mediums: The QS-12H-10-20 can operate with compressed air as per ISO 8573-1:2010 and water, making it adaptable to various pneumatic systems. It also supports lubricated operation, enhancing its performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 6.3mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 20 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Product weight | 9.6g |
| Pneumatic connection 1 | Push-in sleeve ? 12 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm |
| Releasing ring color | Blue | Note on materials | RoHS-compliant |
| Housing material | PBT | Releasing ring material | POM |
| Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 130698 |
Specifications may be subject to change without notice
