Product Model

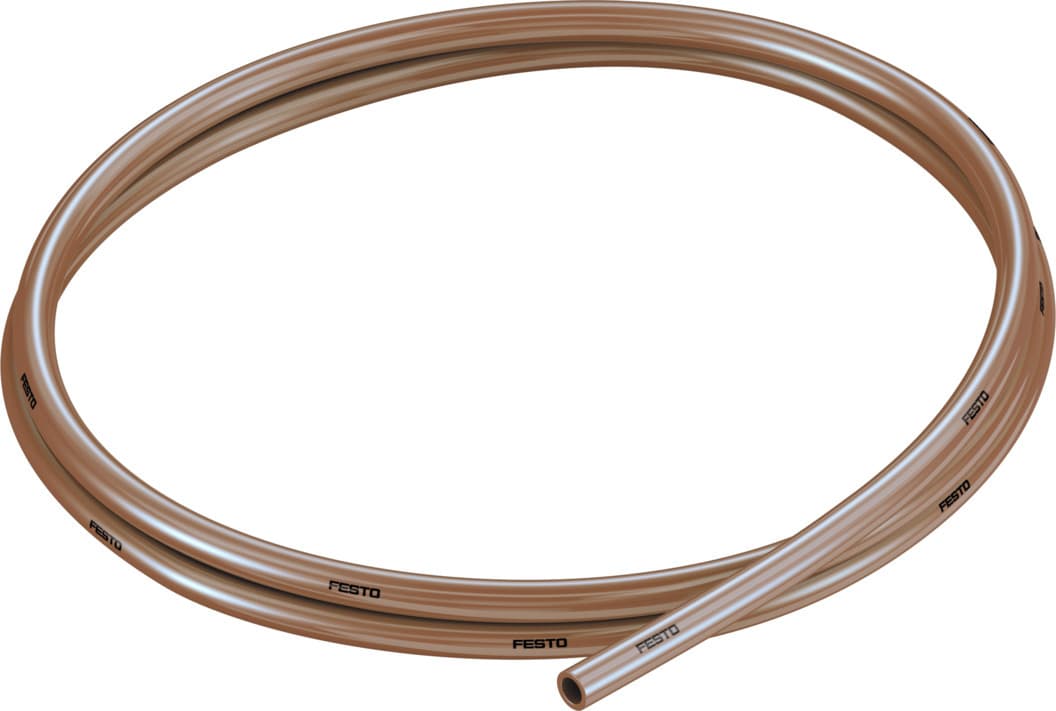

pun-v0-6x2-br-c
Key Features
- 1Suitable for Energy Chains: Designed to work seamlessly with energy chains in high-cycle applications.
- 2Flame Retardant Material: Made from TPE-U(PU) material, meeting UL94 V-0 and V-2 standards.
- 3Wide Operating Pressure Range: Compatible with compressed air and water, operating pressures up to 1.6 MPa.
- 4Robust Construction: With a bending radius of 24 mm and a minimum bending radius of 7 mm.
- 52-Year Warranty: Backed by a comprehensive 2-year warranty for added peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 6mm | Bending radius relevant for flow rate | 24mm |
| Inside diameter | 2mm | Min. bending radius | 7mm |
| Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 232psi |
| Temperature-dependent operating pressure | -13.775psi 435psi | Information on operating pressure | For applications with weld spatter: max. 1 MPa at 20 °C, max. 0.9 MPa at 40 °C, max. 0.7 MPa at 60 °C Water: max. 0.6 MPa at max. 50 °C |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.032kg/m |
| Pneumatic connection | For plug connection outside diameter 6 mm For barbed fitting, inside diameter 2 mm | Color | Brown |
| Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 561722 |
Specifications may be subject to change without notice
