Product Model

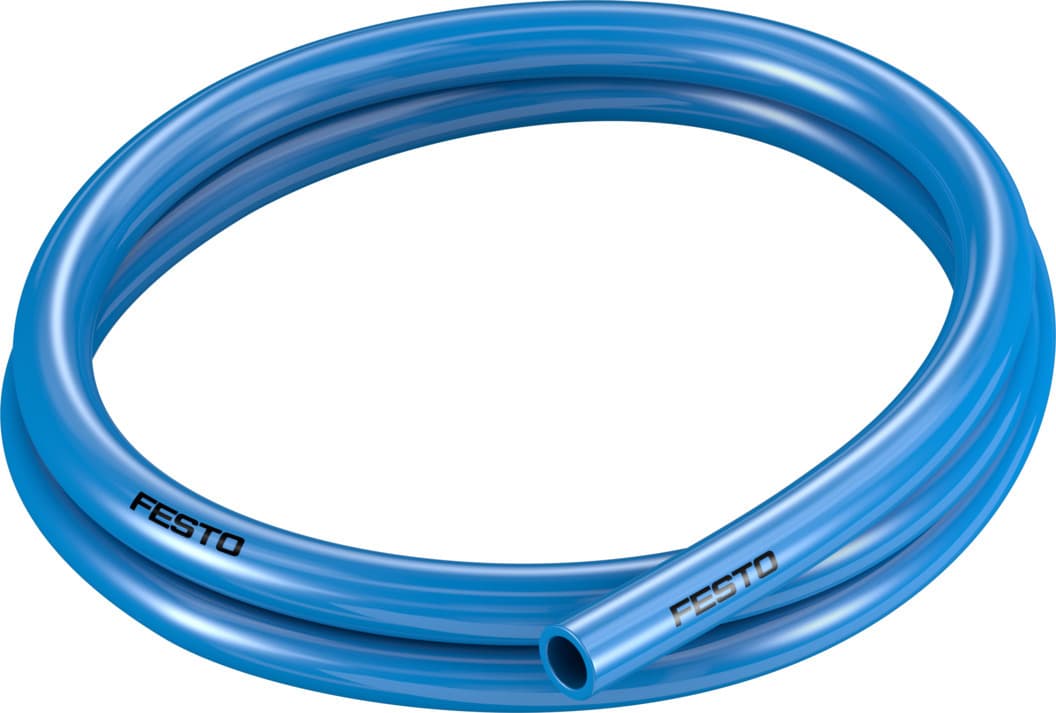

pun-v0-16x2-bl
Key Features
- 1Made from TPE-U(PU) material, ensuring durability and reliability.
- 2Suitable for energy chains and designed to withstand various operating pressures.
- 3Meets UL94 V-0 fire test material standards for safety.
- 4Compatible with compressed air and water (liquid, ice-free) up to 0.6 MPa at 50°C.
- 5German Technical Control Board (TÜV) approved with certificate issuing authority B 013277 0506 00.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 16mm | Bending radius relevant for flow rate | 90mm |
| Inside diameter | 11.8mm | Min. bending radius | 50mm |
| Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 130.5psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.122kg/m |
| Pneumatic connection | For plug connection outside diameter 16 mm | Color | Blue |
| Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 570768 |
Specifications may be subject to change without notice
