Product Model

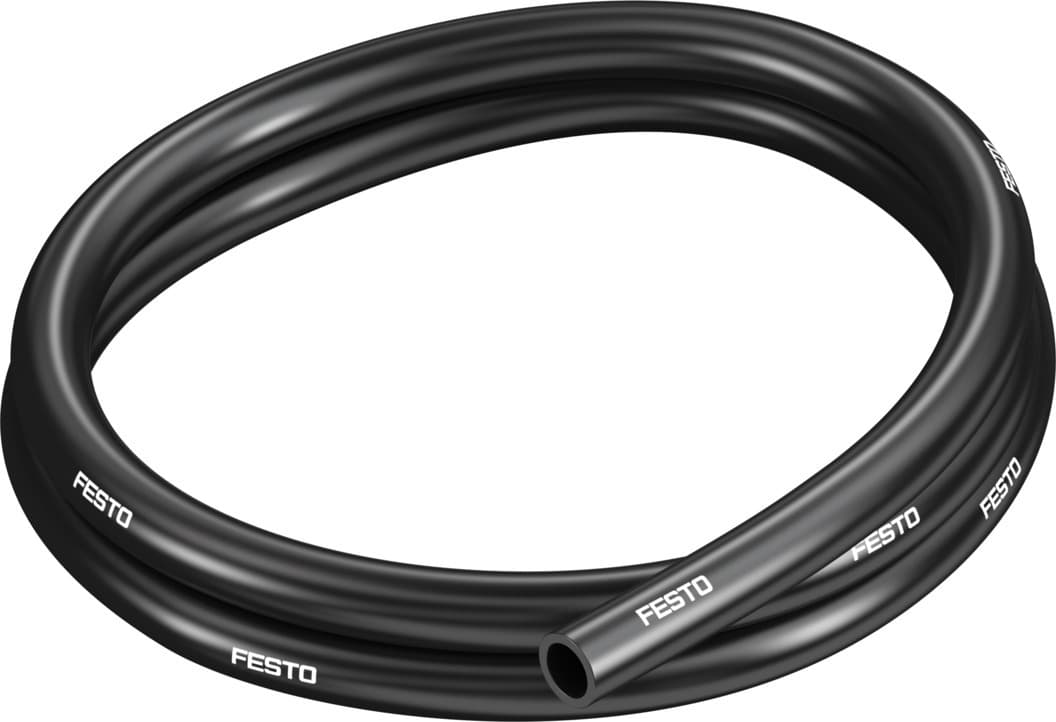

pun-v0-14x2-sw-c
Key Features
- 1Meets UL 94 V0 certification for safety.
- 2Made from durable polyurethane for long-lasting performance.
- 3Designed to handle up to 130 psi compressed air.
- 4Operates effectively in temperatures from -35 to 60°C.
- 5Ideal for use with Festo pneumatic systems and accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 14mm | Bending radius relevant for flow rate | 70mm |
| Inside diameter | 9.8mm | Min. bending radius | 45mm |
| Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 87psi |
| Temperature-dependent operating pressure | -13.775psi 130.5psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.096kg/m |
| Pneumatic connection | For plug connection outside diameter 14 mm | Color | Black |
| Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 570351 |
Specifications may be subject to change without notice
