Product Model

pun-6x1-si

Manufacturer

Festo

Key Features

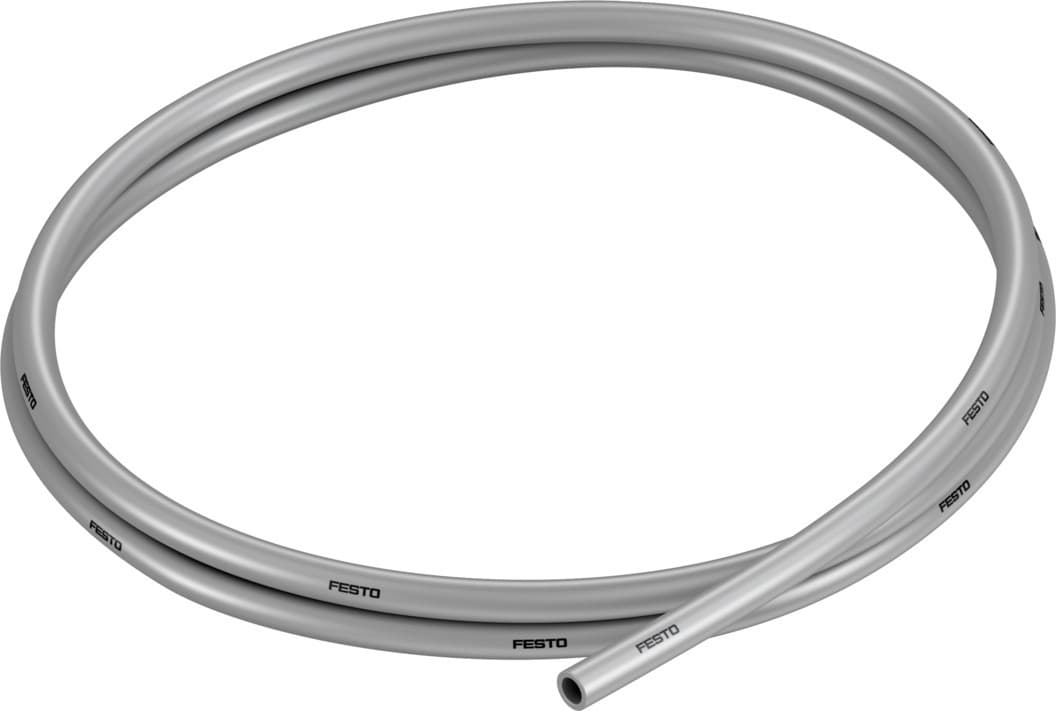

1The Festo PUN-6X1-SI polyurethane tubing is designed for use with compressed air, ensuring reliable performance in various pneumatic systems.
2With an outside diameter of 6 mm and an inside diameter of 4 mm, this tubing offers precise fitment and minimal leakage.
3The tubing is made from high-quality polyurethane material, providing excellent durability and resistance to chemicals and abrasion.
4The PUN-6X1-SI tubing is suitable for a wide range of ambient temperatures from -35°C to 60°C, making it versatile for various industrial applications.
5This Festo tubing features a maximum operating pressure of 145 psi, ensuring it can handle high-pressure pneumatic systems with ease.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	6mm	Bending radius relevant for flow rate	26.5mm
Inside diameter	4mm	Min. bending radius	16mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.0192kg/m	Pneumatic connection	For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut For barbed fitting, inside diameter 4 mm
Color	Silver	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	152586

Specifications may be subject to change without notice
