Product Model

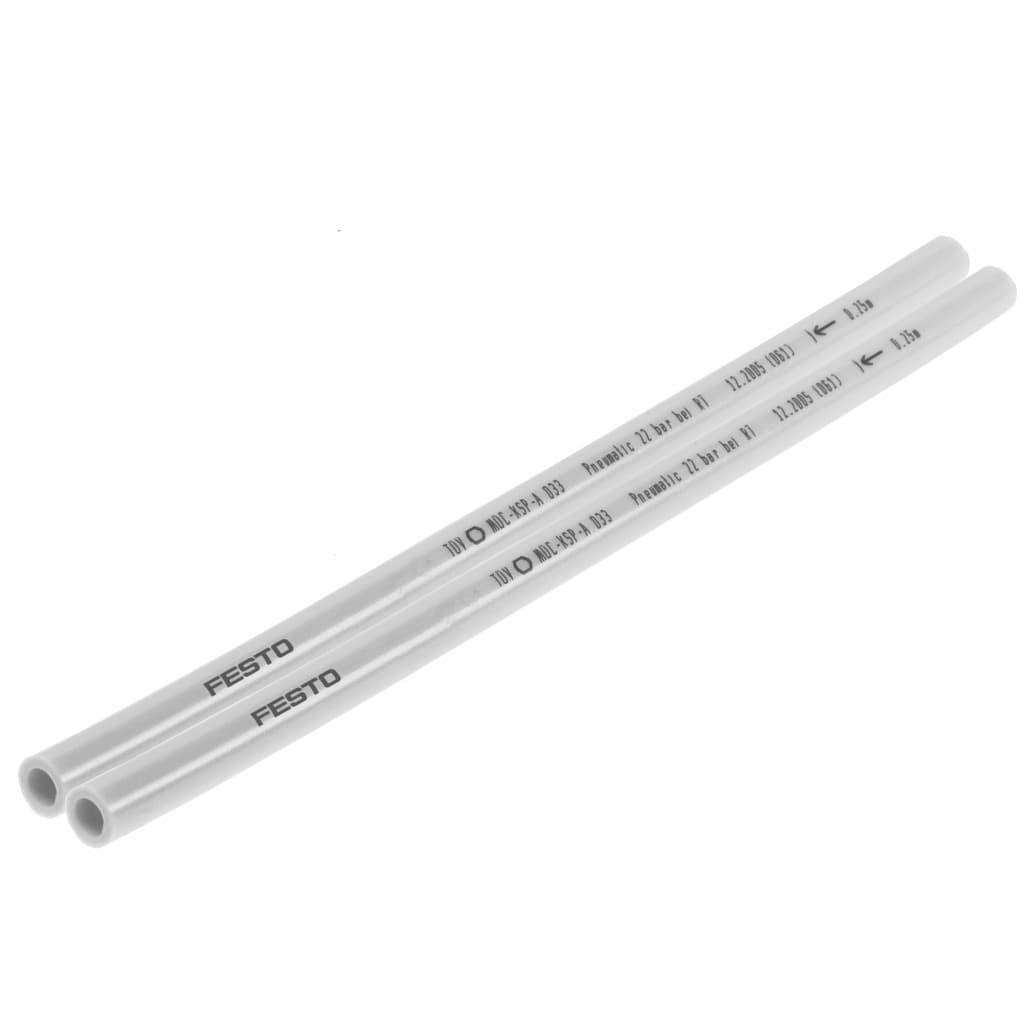

pun-6x1-duo-si
Key Features
- 1High-Quality Material - The PUN-6X1-DUO-SI tubing is made from TPE-U (PU), ensuring durability and resistance to various operating conditions.
- 2Suitable for Energy Chains - This tubing is specifically designed for use in energy chains, providing a reliable connection for pneumatic systems.
- 3Compressed Air Compatibility - The PUN-6X1-DUO-SI tubing operates effectively with compressed air, meeting ISO 8573-1:2010 standards.
- 4Temperature-Dependent Operating Pressure - It can handle operating pressures up to 1 MPa (-0.095 MPa to 1 MPa) across a wide temperature range (-35°C to 60°C).
- 5Certified by TÜV - The product is certified by the German Technical Control Board (TÜV), ensuring compliance with safety and performance standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 6mm | Bending radius relevant for flow rate | 26.5mm |
| Inside diameter | 4mm | Min. bending radius | 16mm |
| Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
| Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.0384kg/m | Pneumatic connection | For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut For barbed fitting, inside diameter 4 mm |
| Color | Silver | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 152823 |
Specifications may be subject to change without notice
