Product Model

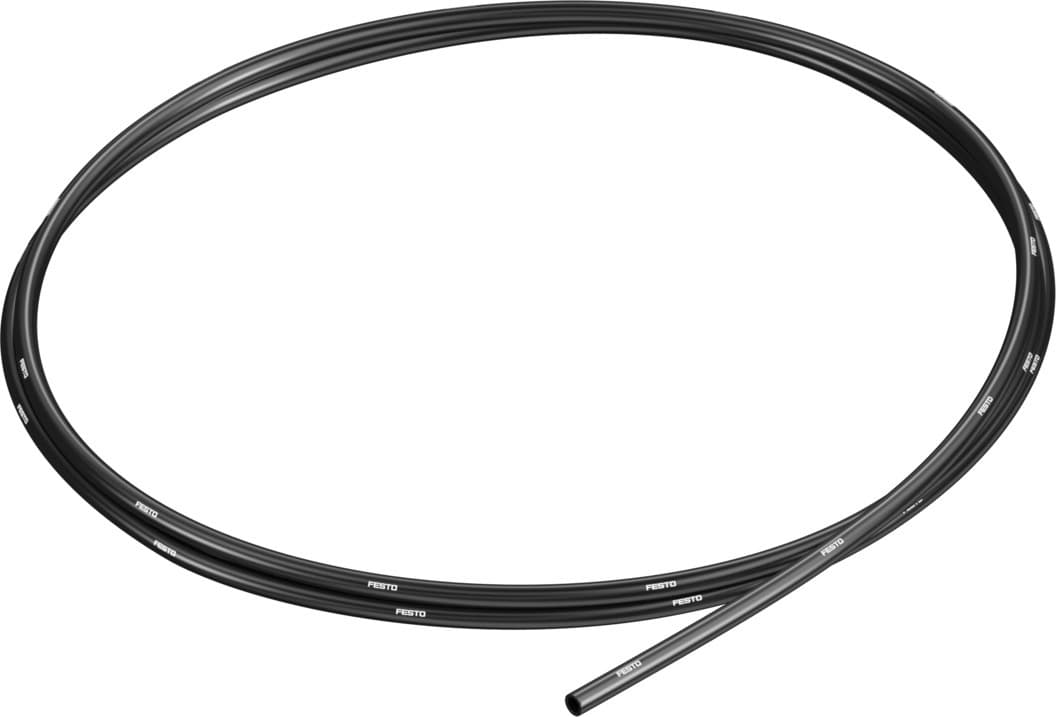

pun-3x0,5-sw
Key Features
- 1High-Quality Material: Made from thermoplastic polyurethane (TPE-U/Pu), ensuring durability and resistance to chemicals, hydrolysis, and UV radiation.
- 2Versatile Applications: Suitable for compressed air and water applications, making it ideal for use in cleanrooms and water-based systems.
- 3Easy Installation: Features a one-click principle for easy installation, reducing setup time and effort.
- 4Temperature-Dependent Pressure: Operates within a temperature range of -35°C to 60°C, with operating pressures from -0.095 MPa to 1 MPa.
- 5Compliance and Certifications: Meets FDA compliance, VDMA24364-B2-L, TÜV, and UL94 HB standards, ensuring safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Outside diameter | 3mm | Bending radius relevant for flow rate | 12mm |
| Inside diameter | 2.1mm | Min. bending radius | 9mm |
| Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
| Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
| Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
| Product weight by length | 0.0044kg/m | Pneumatic connection | For plug connection outside diameter 3 mm For barbed fitting, inside diameter 2 mm |
| Color | Black | Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
| Manufacturer ID | 159661 |
Specifications may be subject to change without notice
